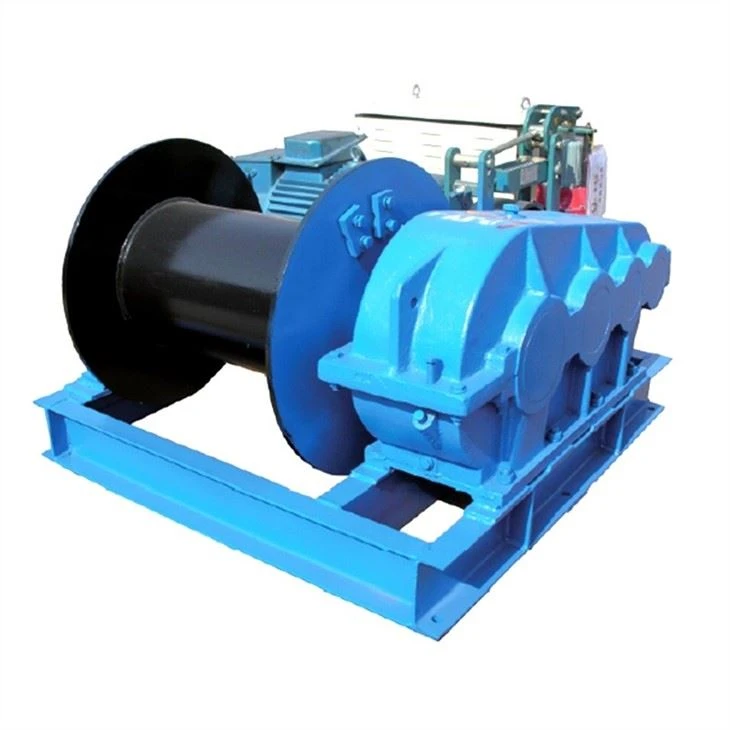

Construction Winch Electric Winch 15 Ton
Warranty:3 year
Place of Origin:Henan China
Control:Remote control Press button control
Working duty:A3~A5
Power supply:3 Phase 380V 50Hz
Painting color:According to your requirements
Description
Construction winch electric winch 15 ton
Product Description
Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.
Product Drawings
Construction winch electric winch 15 ton
1. Features
1. High universality
2. Compact structure
3. Small size, light weight, easy to use and transfer
4. Smooth ride
5. Very low noise
6. Large reel rope capacity gives you a wide range of options in terms of lifting height or pulling length.
7. The lifting or pulling speed can be adjusted according to different use environment.
8. This wire rope hoist is suitable for building water conservancy, forestry, mining, wharf and other places of lifting or traction operations.
Technical parameter of Construction winch electric winch 15 ton
| Model | Rated load (KN) | Rated speed (m/min) | Rope length (m) | Rope dia. (mm) | Motor power (KW) | Overall dimension (mm) | Dead weight (kg) |
| JK0.75D | 7.5 | 30 | 100 | φ9.3 | 3 | 900x340x400 | 165 |
| JK1.25D | 12.5 | 46 | 120 | φ11 | 7.5 | 1140x400x450 | 315 |
| JK1.60D | 16 | 28 | 160 | φ12.5 | 7.5 | 1200x440x480 | 350 |
| JK2.0D | 20 | 36 | 190 | φ13 | 13 | 1400x470x548 | 510 |
Details Images

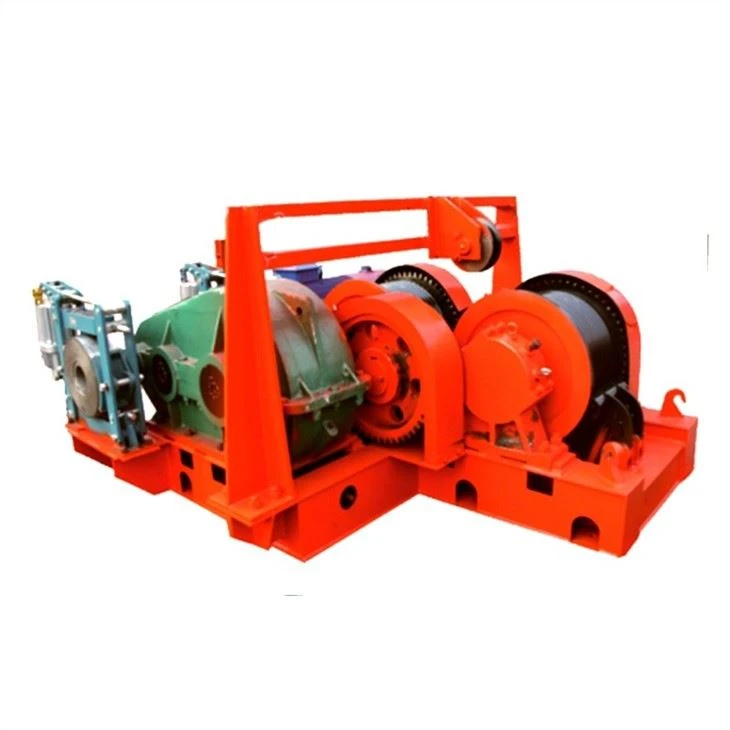

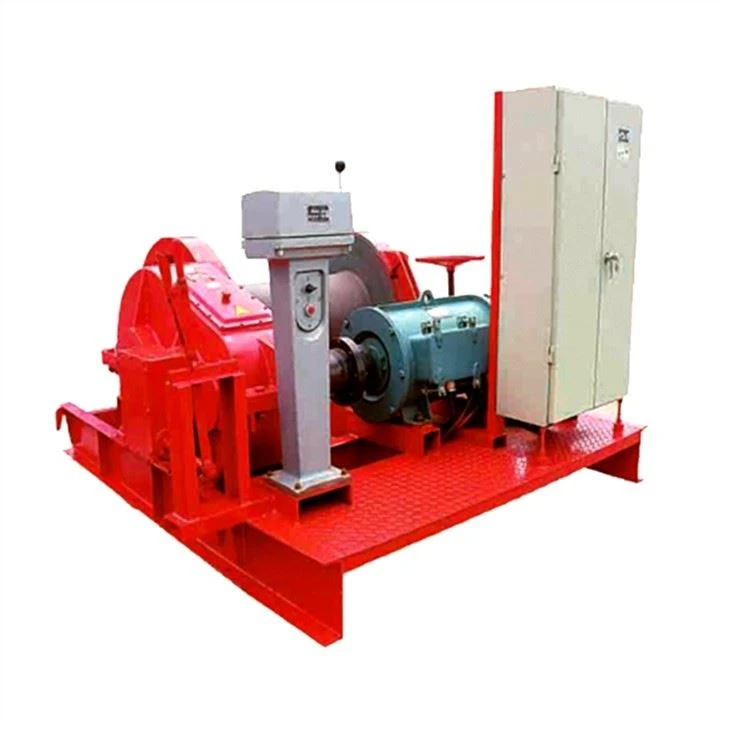

Product pictures
Packing&shipping
