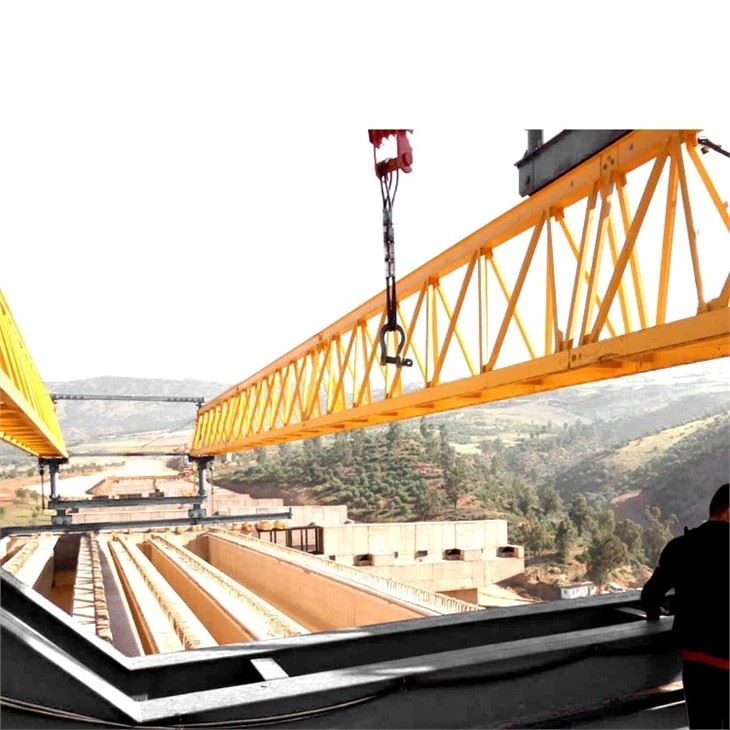

Concrete Highway Beam Launcher Crane

Heavy duty launching cranes bridge erecter

Description:

Beam Launcher Bridge girder erection machine merges an adaptation of a wide range of work, good compact structure, convenient operation, whole crane body with safety steel structure. This product can be used not only in plain construction environment, but also can meet the construction situation of mountain highway slope, Ramp bridge.

Beam launcher body includes main beam,cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever structure and hydraulic driving system, with high performance and strong working efficiency.

This type launching crane is well applied in highway and bridge construction site and railway construction site. It can be used for environment of no fire, no explosion and no corrosive media with temperature from -40℃~+55℃.

Heavy duty launching cranes bridge erecter drawing

Heavy duty launching cranes bridge erecter Parameter

Railway Construction bridge launcher Advantage

Low height, narrow width, light weight and compact structure.  The whole set can pass through the tunnel; what’s more, it can feed girder and erect girder in tunnel.

The weight of the maximal part is no more than 6.6t and the length is no more than 10m which can meet the vehicle transportation rules

To meet the requirement of the limit of present railway, it can work under the condition of multiple tracks.

The symmetrical design of main girder, and to reserve the hole of bolts to erect girder bidirectional and shift span for erecting

Auxiliary trolley and upside-down charging gantry are added, and it has quite complete function which can lay track. It can erect the girder of highway after modification.

It can move a long distance on the rail with self- power

Compact structure, easy to install and maintain for users. It only needs to disassemble partially when transfer site by train, the upside-down

Packing methods:

1. Wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.

Delivery methods:

1. If the size is too big, usually by bulk ship or by container after truncation

2.Transport ways are based on reducing cost for you and keep the segment lifter performance.

Delivery time:

Within 30 to 40 working days after the receipt of deposit.

Transportation:

generally 35 days to 50 days to destination port.

About Us

FAQ

1. What’s the information should I provide when inquiry?
More details or drawings, more better.
A: Lift capacity B: span C: lift height D: power source
Or other specials you give us will be more appreciated.

 2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.B: remote control with push buttons
C: cabin(space capsule seat) control with joystick.Choose any type as you like.

 3. Can this type work in hazardous environment?
Sure! Can customize for you, acid proof or explosion proof, no problem for that.

 4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

 5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

 6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
