Grab Bucket Overhead Crane

Product Model；QZ Lifting capacity: 5-450t
Span:6m - 31.5 m
Lift height: 3m - 60m
Working Duty: A3-A6
Customized service:Provide
Working Temperature: -25 to 40°C

Send Inquiry

Description

Grab overhead crane

product description

Grab bucket overhead cranes refer to bridge cranes that use a grab bucket as a spreader. In the preparation of raw materials, it can perform operations such as unloading, stacking, reverse transportation, reclaiming and loading. The grab bridge crane is widely used in the hoisting of general cargo in various factories and mines, and is equipped with a special spreader such as a grab for special operations.

■ Electric System of electric bucket grab crane:

1. Safety slide contact line or angle slide contact line;

2. Trolley power supply through flat cable;

3. Traveling smoothly and beautiful exterior;Electric Double Girder Overhead Clamshell Bridge Crane Grab Bucket For Construction 18 tons

■ Protection of electric bucket grab crane:

1. Rain covers for lifting mechanism, motor box and drive system outdoors;

2. Anti-collision device, sound and light alarm device;

■ Control System of electric bucket grab crane:

1. Handle control;

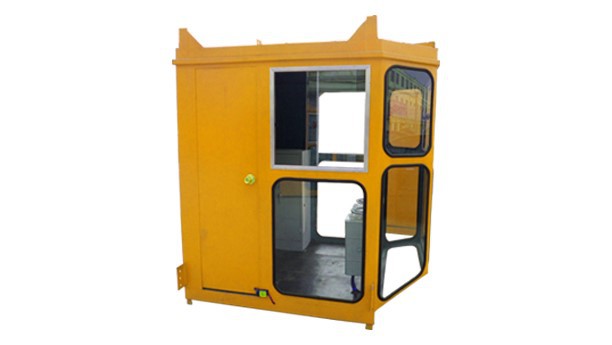

2. Cab control can be customized according users' needs with intermediate working level;

3. The cab can be open or close style installed left or right;

4. Entrance of cab: side entrance, end entrance and top entrance

learn more

comparison of product parameters

Capacity	t	5	10	16	20
Span	m	10.5-31.5	10.5-31.5	10.5-31.5	10.5-31.5
Lifting Height	m	6-18	6-18	6-18	6-18
Lifting Speed	m/min	39.2	39.3	41.8	45.7
Trolley Speed	m/min	44.6	45.9	43.2	43.2
Crane Speed	m/min	93.6	112.5	98	87.3
Work Duty		A5-A6	A5-A6	A5-A6	A5-A6
Track Type		P43 or QU70	P43 or QU70	QU70 or 90*90	QU70 or 90*90
