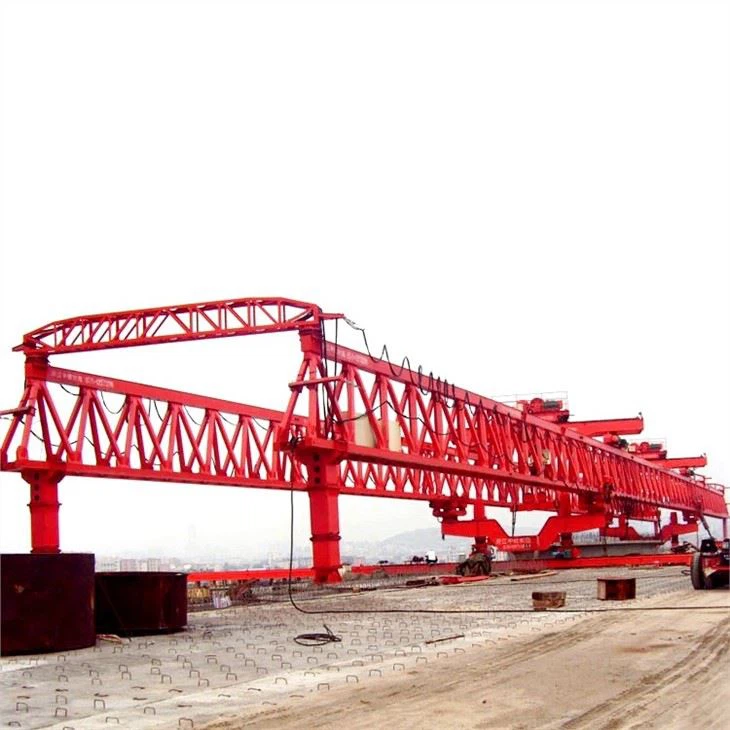

Highway Building Steel Launching Gantry Crane

Highway Building steel launching gantry crane

Description:

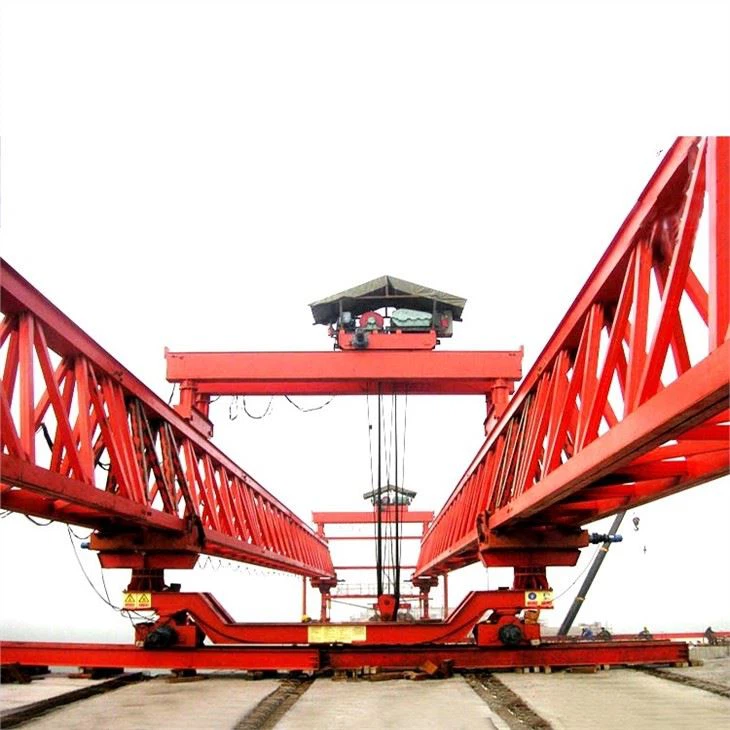

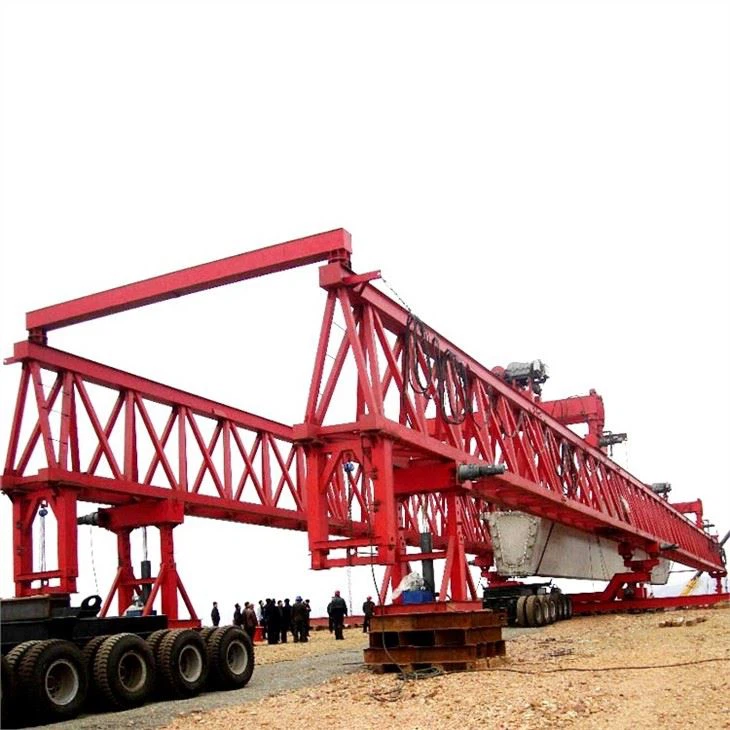

Widely used launching erecting From China factory is bridge crane that places precast concrete beam into precast pier. And it consist of main girder,front leg, middle leg, rear leg, rear auxiliary leg, lifting trolley, hydraulic system and electrical device.

Double girder truss type launcher girder crane is suitable for highway and railway bridge, such as straight bridge, skew bridge, curved bridge and so on.

Highway Building steel launching gantry crane drawing

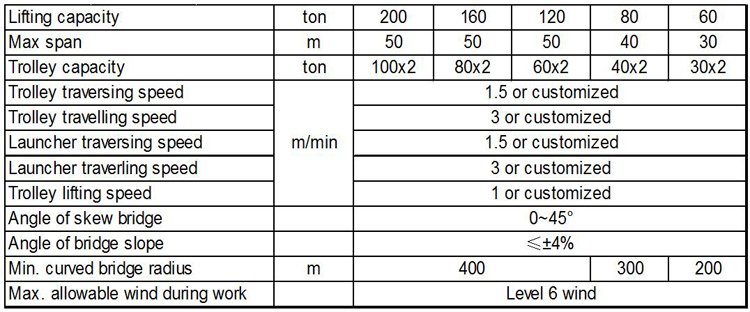

Highway Building steel launching gantry crane Parameter

Railway Construction bridge launcher Features

♦ It is equipped with two electric hoists for lifting the pre-cast segments and adjusting the cross-fall

♦ Segment lifters are usual designed to install segments in ramps, in tight locations, or in areas that are generally difficult to access

♦ Following assembly, installation and commissioning by suitable cranes, segment lifter can operate independently

♦ Segment lifter incorporate two primary hydraulic systems providing both lifting of segments and moving of the frame itself during construction

♦ When high lifting speeds are required, tandem lifting units or winch systems are utilised on segment lifter

Packing methods:

1. Wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship after packing.

Delivery methods:

1. If the size is too big, usually by bulk ship or by container after truncation

2.Transport ways are based on reducing cost for you and keep the segment lifter performance.

Delivery time:

Within 30 to 40 working days after the receipt of deposit.

Transportation:

generally 35 days to 50 days to destination port.

About Us

Our Service

lProfessional sales team, with full experience of serving international market, can privede you a quick and professional reply, foresee and solve all the problem you may meet.

lExclusive engineer team support , can give you the right solution and all related technical help.

lSenior engineers’ professional installation guide and commissioning on site can provide if needed, and free training for end-user’s operator is also available.

l2 year warranty for whole machines, providing all main parts free of charge.   Low charge for continue maintenance will provide when warranty is expired.

Easy maintenance strong and durable precast concrete bridge girder launcher/girder launching equipment

Frequently asked questions

1. Q: Can your crane be customized?
A: Yes, because the working condition are different, all our products are customized depending on detail requirement ! We have professional engineering team will rich expericence, and they will provide you the most suitable and accurate design for your using plan.

2. Q: Do you have engineer oversea installation service?

A: Yes, we have senior engineers’ professional installation guide and commissioning on site, and free training for end-user’s operator is also available.

3. Q: How long of your warranty? What is your after-sale service?

A: We have 2 year warranty for whole machines, providing all main parts free of charge. Low charge for continue maintenance will provide when warranty is expired.We will post the parts to you by express, such as DHL, UPS, FEDEX, etc. If needed, our senior engineer will send to your site for a comprehensive maintenance.

4. Q: Can this type crane work in hazardous environment?

A: The crane is just for application in general manufacturing workshop. If you need crane for hazardous environment, we can make sepcial design for you.

5. Q: How many safety devices of the crane equiped?

A: Overload limiter, hook position limiter, hoist travel buffer, long travel limiter, long travel buffer, rail clear plate, over-voltage protection device, low-voltage protection device, emergency stop system, motor overload protection, and so on.
