Launching Girder

High Way Use Bridge Girder Launching Gantry Crane is mainly used in the Inter-city railway building projects, such as metro way, Light rail transit, etc. As economy and public transportation develop, inter-city railway is vigorously building in developing countries, such as China, Indonesia, Philippine, Vietnam, Myanmar, Russia, Kazakhstan, etc. As the great project of “One Road One Belt” implement deeply, this “U” girder launching gantry cranes are of great potential market in the world.

Send Inquiry

Description

Products Description

Product Paramenters

Max Span	50m	40m	35m	30m
Hoist Capacity 160t		100t	80t	60t
Lifting Speed of Trolley	0.8m/min	0.8m/min	0.8m/min	0.8m/min
Moving Speed of Crane	4.5m/min	4.5m/min	4.5m/min	4.5m/min
Moving Speed of Crane	2.7m/min	2.7m/min	2.7m/min	2.7m/min
Loading Capacity	80t×2	50t×2	40t×2	30t×2
The Speed of Heavy Load	4-8m/min	4-8m/min	4-8m/min	4-8m/min
The Speed of Empty Load	18m/min	18m/min	18m/min	18m/min
Max Angle of Inclined Bridge	45°	45°	45°	45°

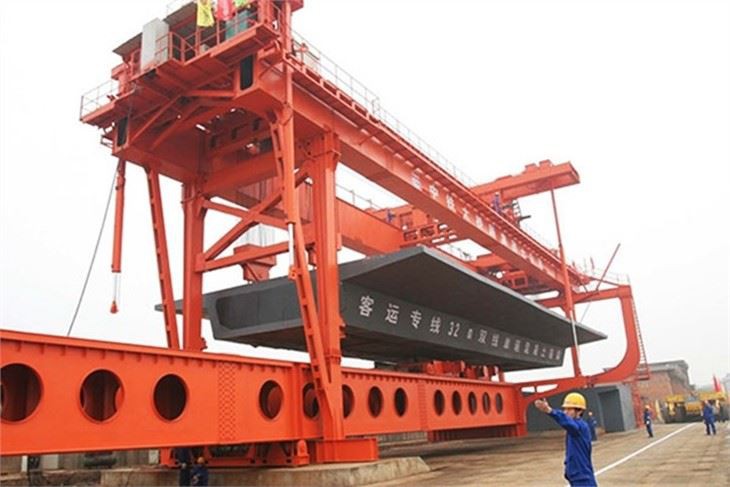

Launching Girder is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and folding technology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.

Details Images

Application

Our Advantages

Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.

Installation Instructions
