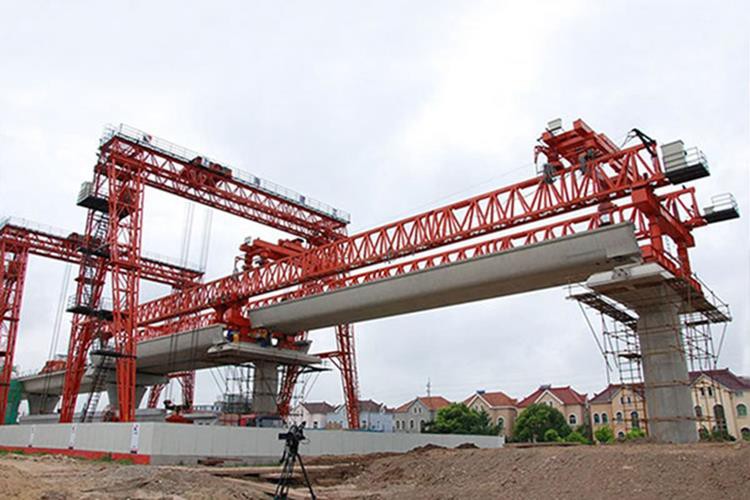

Truss Type Concrete Bridge Beam Launcher Crane
The capacity:60-200ton
The span:20-50m
Control Mode:Pendant, Remote Control and Cabin Control
Description
Product Introduction
Truss type bridge beam launcher crane is used for erection of prestressed reinforced concrete beams with a span of 40 meters and below for highway bridges, erection of T-beams (pass bridges 2201 and 2101) for passenger and freight lines with a speed of 200 kilometers per hour and the reconstruction of new and old lines, and 32m railway The following concrete beams, special bridges 9753 beams. This machine is a single-arm simple-support type, which can erect beams with a large span of 40 meters and a large rated load of 168t or less. It also realizes full-scale mechanical traverse of the beams to achieve a drop beam in place, especially in the rail beam industry Road bridge construction equipment with incomparable advantages of conventional railway bridge cranes.

Detail informations
| Pruduct Name | Truss Type Concrete Bridge Beam Launcher Crane |
| Condition | New |
| Color | Customized |
| Application | Railway, Bridge Building, Highway |
| Warranty | 3 years |
| Max Lifting Capacity | 60-160 Ton |

Truss type bridge beam launcher crane features
1.The first domestic creating is triangle beam, it has many advantages, such as light weight, high stiffness, low deflection, and high wind-resistance .
2.Unique steel pin connection, which is not only firm, but also easy to install.
3.Flexible steel legs, convenient to disassemble and transfer.
4.The frequency-converter can be installed according to user's requirements.
5.The span can be within 60 meters, the height of hoisting is under 20 meters, the weight of hoisting is under 200 tons per hoist.
6.It is widely used in highway and railway construction.
7.Tonnage Customize ,Industrial Customize.
