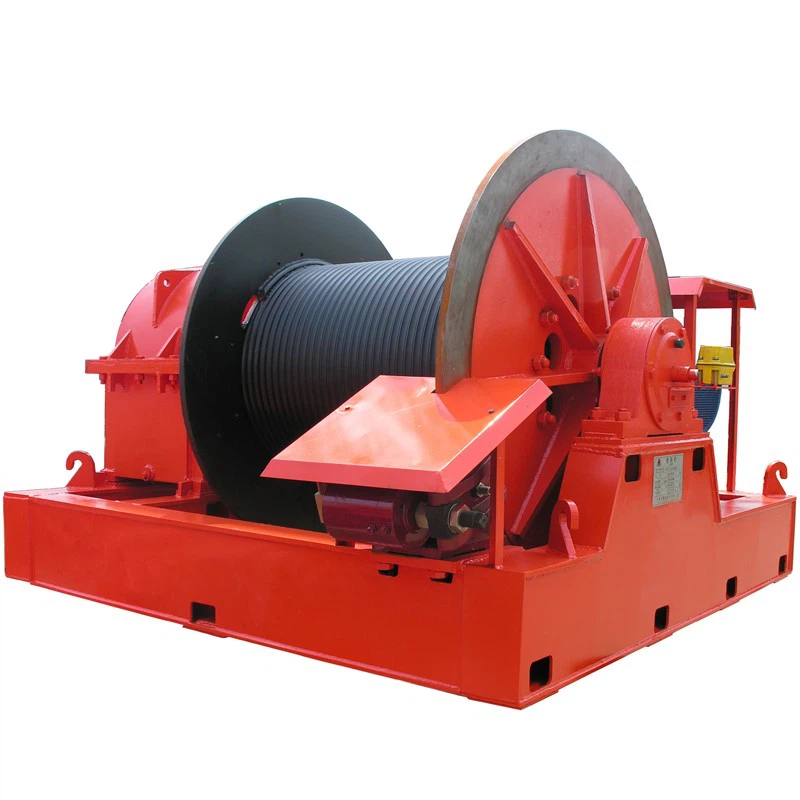

20 Ton Electric Winch For Crane
Warranty:3year
Place of Origin:Henan China
Control:Remote control Press button control
Working duty:A3~A5
Power supply:3 Phase 380V 50Hz
Painting color:According to your requirements
Description
electric winch for crane Description
Electric Wire Rope Winch Machine is driven by human or mechanical power drum, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch. The winch is powered by electric, and it composed by electric motor, coupling, brake, gear box,drum and frame.
electric winch for crane drawing
electric winch for crane parameter
|
Basic parameter |
Rated pull |
Average speed |
Rope length |
Rope dia. |
Motor model |
Motor power (KW) |
Outer size |
Dead weight |
|
Model |
KN |
m/min |
m |
mm |
KG |
|||
|
JM1 |
10 |
15 |
80 |
9 |
Y112M-6 |
2.2 |
740*690*490 |
270 |
|
JM1.6 |
16 |
16 |
115 |
12.5 |
Y132M-6 |
5.5 |
940*900*570 |
500 |
|
JM2 |
20 |
16 |
100 |
13 |
Y160M-6 |
7.5 |
940*900*570 |
550 |
|
JM3.2 |
32 |
9.5 |
150 |
15.5 |
YZR160M-6 |
7.5 |
1430*1160*910 |
1100 |
|
JM5 |
50 |
9.5 |
190 |
21.5 |
YZR160L-6 |
11 |
1620*1260*948 |
1800 |
|
JM8 |
80 |
8 |
250 |
26 |
YZR180L-6 |
15 |
2180*1460*850 |
2900 |
|
JM10 |
100 |
8 |
200 |
30 |
YZR200L-6 |
22 |
2280*1500*950 |
3800 |
|
JM12.5 |
125 |
10 |
300 |
34 |
YZR225M-6 |
30 |
2880*2200*1550 |
5000 |
|
JM16 |
160 |
10 |
500 |
37 |
YZR250M-8 |
37 |
3750*2400*1850 |
8800 |
|
JM20 |
200 |
10 |
600 |
43 |
YZR280M-8 |
45 |
3950*2560*1950 |
9900 |
|
JM25 |
250 |
9 |
700 |
48 |
YZR280M-8 |
55 |
4350*2800*2030 |
13500 |
|
JM32 |
320 |
9 |
700 |
52 |
YZR315S-8 |
75 |
4500*2850*2100 |
20000 |
|
JM50 |
500 |
8 |
800 |
60 |
YZR315M-8 |
90 |
4930*3050*2250 |
38000 |
|
JM65 |
650 |
10 |
2400 |
64 |
LA8315-8AB |
160 |
5900*4680*3200 |
46000 |
electric winch for crane features
⒈ It has slow and fast two speeds ;
⒉ It usually for light, middle and heavy duty material;
⒊ Max rope length reah to 1500m;
⒋ Widely used in factory,mining or double beam cranes;
⒌ Compact structure and reasonable design;
⒍ Top quality with competitive price.
electric winch for crane detail
