Description
Products Description

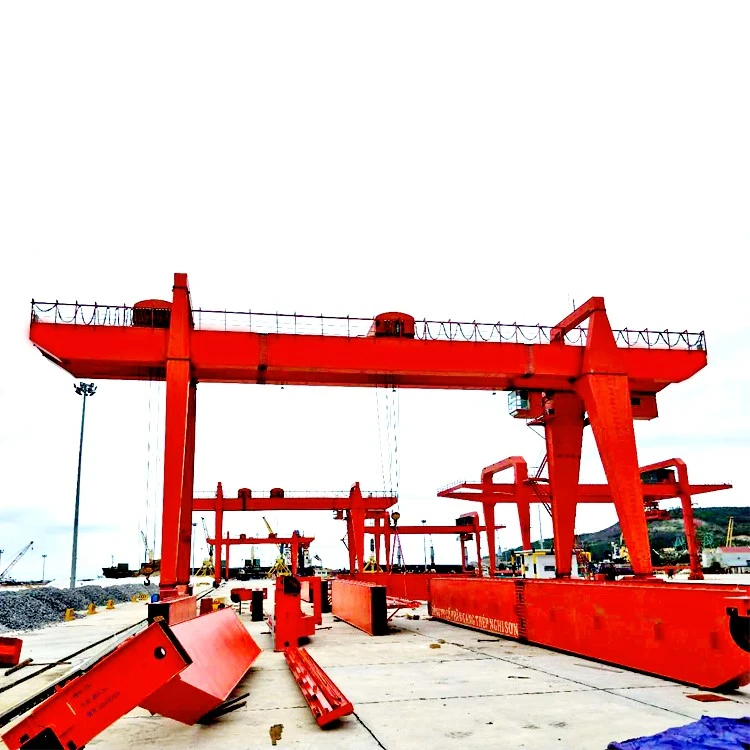

The 50 ton gantry crane is operated by the driver operating the linkage table in the cab. The cab is usually hung under the trolley and runs with the trolley. All operations on the crane can be achieved on the cab linkage. It is also possible to operate the cart on the running side of the cart to facilitate the temporary shifting of the crane. When operating on the running side of the cart, it is electrically interlocked with the main operating linkage.
MG 5-50/12.5 ton double-beam hook gantry crane - MG general gantry crane (double main beam hook) is suitable for loading and unloading in open warehouses, material yards, railway freight stations, port terminals, etc. It can also be equipped with a variety of special hooks for a variety of special operations.
Own factory
Support customization
Free Installation
5 years warranty
Technical Data Sheet
comparison of product parameters
|
Mechanism
|
Unit
|
Numerical value
|
|
Lifting capacity
|
t
|
10/16/20/32/50t
|
|
Operation mode
|
Remote control
|
|
|
Running speed
|
m/min
|
20/30/45
|
|
Motor speed
|
r/min
|
1380
|
|
Lifting height
|
m
|
9/12/18
|
|
Lifting speed
|
m/min
|
8
|
|
Power Supply
|
V
|
380
|
|
Span
|
m
|
7.5-33.5
|
|
Height
|
m
|
Arbitrarily
|
|
Weight
|
t
|
3-20
|
1. The energy feedback device can effectively save energy.
2. The eight-rope anti-broadcasting mechanism of the container spreader space effectively prevents the swing and twist of the spreader.
3. The intelligent fault detection system can better analyze and warn the equipment.
4. Separate electric house and running trolley reduce the running load of the car and reduce energy consumption.
5, the advanced cart walking automatic correction system, reducing the problem of the rails of the cart, and improving the service life of the equipment.
6, intelligent security monitoring and management system, better suited to the needs of freight yard security monitoring and automated management.
