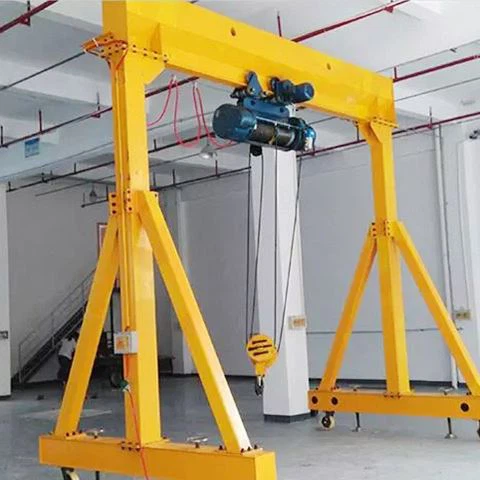

Portable Gantry Crane 1 Ton
video
Portable Gantry Crane 1 Ton

Portable Gantry Crane 1 Ton

Place of Origin: Henan, China
Core Components: Gearbox, Motor
Lifting height: 2m-20m
Hoist type: Electric or Manual
Material: Steel or aluminium
Traveling type: Electric or Manual
Color: Customized
Warranty: 3 Years
Customization: accept

Description

Portable Gantry Crane 1 ton Description

Electric hoist type adjustable height portable gantry crane is most popular type material
lifting equipment for workshop, warehouse material delivery, outdoor, indoor, construction, etc.
It consists of gantry frame, main beam, hoist, electric driven, universal and electrical box,etc.0.5-10 Ton be complete designed and customized as per customer demands.


Portable Gantry Crane 1 ton Features

1. Trackless driven device/hand push type
2. Adjustable lifting height
3. Remote control


Portable Gantry Crane 1 ton Design Drawing

nonrail_mobile_gantry_portable_1625735358_3243f2b8_progressive


Portable Gantry Crane 1 ton Parameters


Model

PT3-1 / PT3-2 / PT3-3

Capacity

0.5 ton

1 ton

2 ton

3 ton

5 ton

7.5 ton

10 ton

Span (m)

2-12 (as your require)

Height (m)

1-10 (as your require)

Lifting equipment

Manual / Electric wire rope or Chain hoist

Power

380V 50HZ 3P or As Required


Portable Gantry Crane 1 ton Safety Devices

● Crane traveling limit switch
● Weight overload protection device
● Lifting height limit device

● Voltage lower protection function
● Phase sequence protection function
● Emergency stop function
● Rain cover for outside hoist, driving units, electrical cubicle.
● Warning indicator: flashing lights and warning sound.
● Wireless infra-detector for anti-collusion


Certifications


Packing and Delivery

■ 100% QC inspection before shipment;

■ All frangible accessories will be protected by plastic papers and then packaged in wooden box;

■ Delivery time: strictly performer based on contract;

single beam overhead traveling crane (3)


After-sales Warranty

■ 24 months warranty from the date of B/L

■ One year quick-wear parts for free

■ Professional technicians provide installation, commissioning services.

■ Technical advisory for any time.
