Model NO.: BX
Type: Small Crane
Max. Lifting Height: 25m
Warranty: One Year
Tower Crane Type: Under Slewing Cranes
Main Girder Form: Single Girder
Moving Type: Fixed
Specification: CE; ISO; CU
HS Code: 84261190
Certification: CE, ISO9001: 2000
Application: Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage
Rated Loading Capacity: 0.06~20 Ton

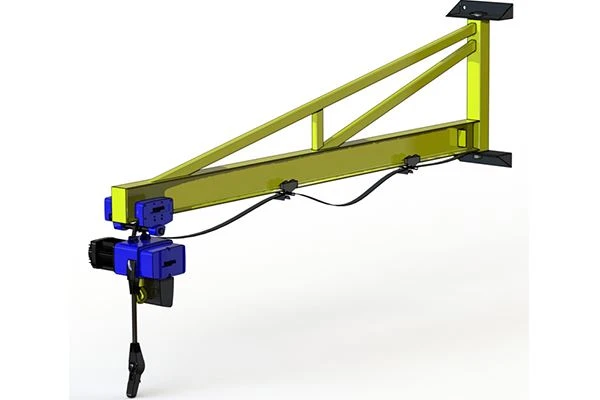

Product Name: 50 Kg Bx Wall Jib Crane with Low Price
Sling Type: Chain
Power Source: Electric
Transport Package: by Strong Plywood Box to Prevent The Rain Soaked
The Brief Introduction Of Mobile Jib Crane
Mobile Jib Crane is small and medium size lifting equipment, safe, reliable, high efficiency, energy-saving, time-saving and labor-saving and flexible feather, in the three-dimensional space and can operate freely, especially in the short, intensive lifting showing the occasion better than any other conventional lifting equipment unique advantages, widely used in workshops, warehouses, terminals and other fixed location.
The Features Of Mobile Jib Crane
1. It is suitable to work in the dock, warehouse, workshop etc fixed working conditions, it can work within the 360 degrees to lift, move and materials handling.
2 . This type machine with advantages of the simple structure, operate convenience, turning agile, wide working conditions.
3. The steel structure of mobile jib crane is strong and built to last, optimized in design to reduce the stresses on your building. Your operators have good control over the load with stepless speed internal control along the runway
The Advantages Of Mobile Jib Crane
Modular design and construction, horizontal adjustment device for the beam, clear and illustrated assembly instructions.
Available as complete crane or as jib crane kit, individual manufacturing and reduced transport
costs with the jib ster kit, component package ready for assembly together with the complete jib ster
High quality standard
Design according to international standards(EN 130011), high quality materials and controlled processing, powerful hoists
Jib Cranes Application
1. The most common applications for jibs are individual workstations; machine tools, welding/fabrication stations, and some small assembly stations.
2. They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.
3. Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts.
4. If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution.
Jib Crane Safety Features
1. Overload protection device
2. Top quality long time bearing polyurethane materials buffer
3. Crane traveling limit switch
4. Voltage lower protection function
5. Emergency stop system
6. Lifting height limit device
Wall mounted jib cranes can be mounted on wall, no special floor space required. And pillar mounted jib cranes only need a minimum of space for the pillar. It can be fastened to foundations with cast-in anchor bolts, with the help of intermediate plates, with heavy-duty anchor bolts, with dowel pins, etc. If required, anchorages and templates can also be supplied as extras.
Shorten loading time, improve work efficiency
With a jib crane, workers can lift, quickly transport and precisely deposit all kinds of work pieces at any time. In this way, the company can save the cost on traveling cranes or fork, and improve the work efficiency mostly. Using a jib crane, you can considerably reduce the set-up and non-productive times of your work.
Easy handling, lighten laboring work
With our outstanding hoisting units: VL electric chain hoist or VT electric wire rope hoist or Bh electric belt hoist, etc, you can position your load quickly and precisely. It is also very important that our jib cranes can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handling heavy or unwieldy parts is considerably reduced.
High quality with good price
Serial production of our hoisting units and jib cranes, ending with full load factory testing of every part, certifies the functionality and quality to customers. We will offer you the most adequate equipments for your needs through good communication.
Customer can obtain consultation and communicate with us through network platform, telephone, E-mail and MSN and etc.
We provide technical matters as well as product knowledge and information concerned with products.
We can provide premium, effective and reliable solutions and quotations according to customers' requirements and budgets.
We also provide customer-case visiting to understand utilizations of our products at site.
We warmly welcome customers to visit our factory prior to placing an order.
The Sale of service:
We have always designed products stringently according to contracts and customers' requirements.
We have always manufactured stringently according to ISO 9001 quality management system.
We have always strictly inspected each component of each product to ensure product quality.
After-sale service department consists of well-trained technical personnel and installation engineers.
Our professional technical personnel can provide installation guidance, device debugging and operation training at site or through remote operation.
Routine maintenance information is accessible.
