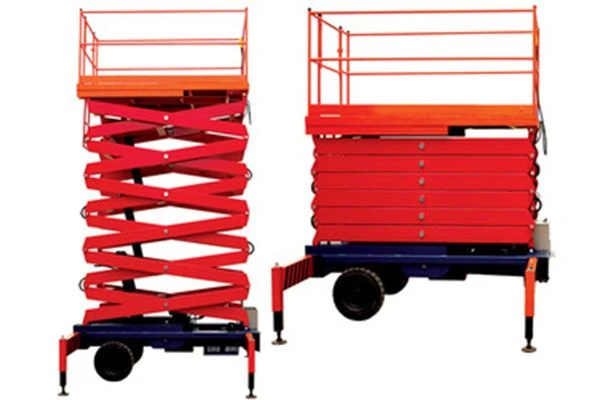

hydraulic lifting platform

hydraulic lifting platform

Product Description Main reatures: 1. Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters. 2. It can be directly installed into the ground without architectural supporting pits and...

Send InquiryChat Now
Product Details
Welcome to consult hydraulic lifting platform price and quotation with Henan Dowell Crane Co.,Ltd, which is one of the leading hydraulic lifting platform manufacturers and suppliers in China, and we can offer you customized products.

Product Description

Main reatures:
1. Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2. It can be directly installed into the ground without architectural supporting pits and easy to operate.
3. Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4. Emergency Descending: When there is no power or malfunctions, manually descend the device
5. It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6. This machine max. Lifting height is 6000mm

hydraulic lifting platform Parameters:

Platform size1 30 0mm(L)* 9 00 mm(W)  or    customized
Max Platform Height6000mm
Min Platform height80mm
Speed60mm/s
Load capacity250KG~350KG
Control voltage24V/DC
Power Output1. 5 KW
Power Input220V/50HZ/25A (or customized for local power supply)
Drive SystemHydraulic  or screw
Control ModeInching Switch or Automatic
Drive ControlSelf-resetting system
OverloadProtection Over current relay
Material of PlatformCheckered slip-proof aluminum alloy
PaintingPlastic electrostatic spraying
Guard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steel

Operation PanelPolished aluminum Alloy
Working ConditionBoth indoors and outdoors
Working temperatureFrom - 5 0 ° ~60 ° C
Installation

Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)
Emergency Stop

The lifting and lowering process can be stopped immediately
by pressing the emergency button.
Safety deviceSafety InterlockLock the platform when it is out of control
 Safety SensorThe operation must be stopped immediately
the safety edge meets obstacles during
operation.
 Emergency loweringThe platform can be lowered by
opening
hydraulic valve manually or rolling screw rod.
 Auto-flapTurn up after lifting


hydraulic lifting platform Packaging Details

Stretch Film & Plywood Case outside of Towable boom lift

hydraulic lifting platform Delivery Time

Shipped in 20 days after payment
