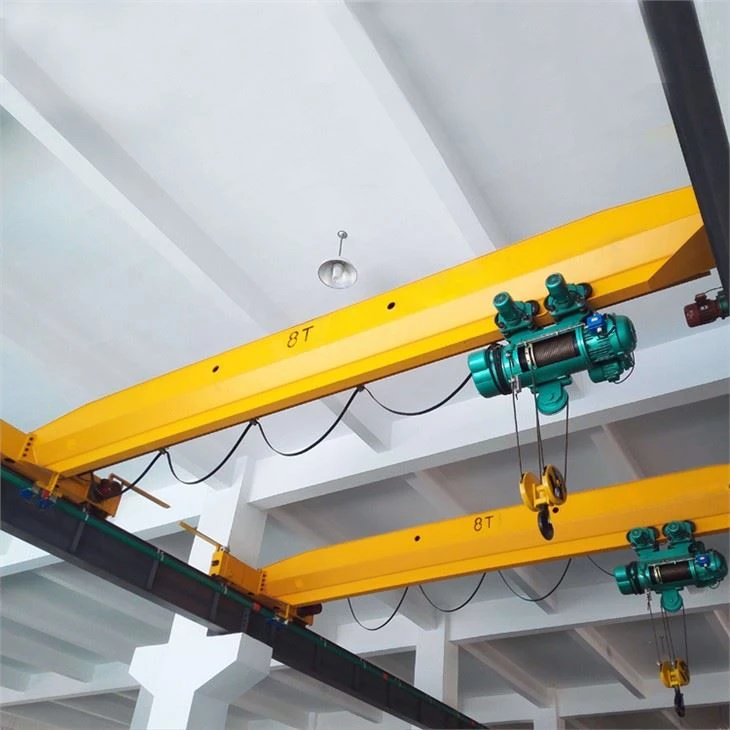

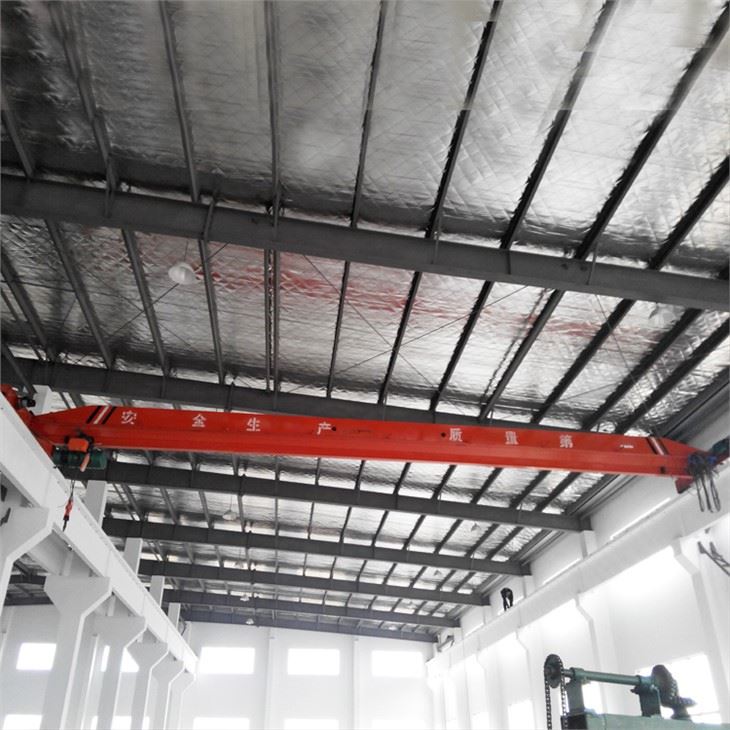

5 Ton Overhead Crane For Sale With Electric Hoist
5 ton overhead crane for sale with electric hoist Rated lifting capacity: 5t Control method: pendant or cabin Electric hoist: CD/MD Working duty: A4-A5 Rail recommended: 38-43 Power source； 3 Phase, 50HZ, 380V LH type Picture for reference
Description
product description
LDE electric single girder overhead crane could be widely used to handle materials in many industries' workshop and
warehouse. such as machinery manufacture. warehouse. logistic. food. paper making, electronics industries workshop
and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with
ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long
traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class.
The working class can reach to A5/M5 class under ISO standard.
LDE Europe standard single Girder overhead crane is our new designed crane for the low workshop and high lifting
height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc.
It could save your factory space and investment effectively. Its technology is advanced and design is based on
international standard: DIN (Germany), FEM (Europe), and ISO (International). Its particular and special travelling
structure is your best choice.
MainBeam
Beam deflection with DIN/FEM standard Steel Material: Fe37 or Fe52(Equal to Chinese standard Q235B and Q345B) Whole length CNC cuttingfor complete web plate, to ensure the precision and smooth curve shape ofthe camber.
Traveling Motor
- All gear under strength heat treating.
- Integrated motor + hardened gearbox + disc brake
- Stepless traveling
- Max.speed 4800rpm
- P55 protection
- Semi-fluid grease lubrication,maintenance freeSilent technology, enjoy handling
Hook
Materical:34CrMo4QT/34CrNiMo6QTRotating by 360 degreeHook Safety lock
Hoist Trolley
European FEM design standardEasy to operate, safe andefficient;Frequency conversion speedregulation
comparison of product parameters
|
Capacity (T) |
Span (m) |
Lifting Height (m) |
Work Duty |
Lifting Speed (m/min) |
Hoist Traveling Speed (m/min) |
Crane Traveling Speed (m/min) |
Rail |
| 1 |
7~30 |
3~20 |
A5 |
0.8/5 |
2~20 | 3~30 |
P24 |
| 2 |
7~30 |
3~20 | A5 | 0.8/5 | 2~20 | 3~30 |
P24 |
| 3.2 |
7~30 |
3~20 |
A5 |
0.8/5 | 2~20 |
3~30 |
P24 |
| 5 |
7~30 |
3~20 | A5 | 0.8/5 | 2~20 | 3~30 | P24 |
| 10 |
7~30 |
3~20 | A5 | 0.8/5 | 2~20 |
3~30 |
P30 |
| 16 |
7~30 |
3~20 | A5 | 0.6/4 | 2~20 |
3~30 |
P43 |
| 20 |
7~30 |
3~20 | A5 | 0.6/4 | 2~20 | 3~30 | P43 |
packaging
Steel Structure by Rainproof Cloth. lt can reduce abrasion when transport.
Main bridge girder will be cut, so the crane can be loaded into container
Electric parts are packed by high quality plywood crate to reduce distortion in conveying.
