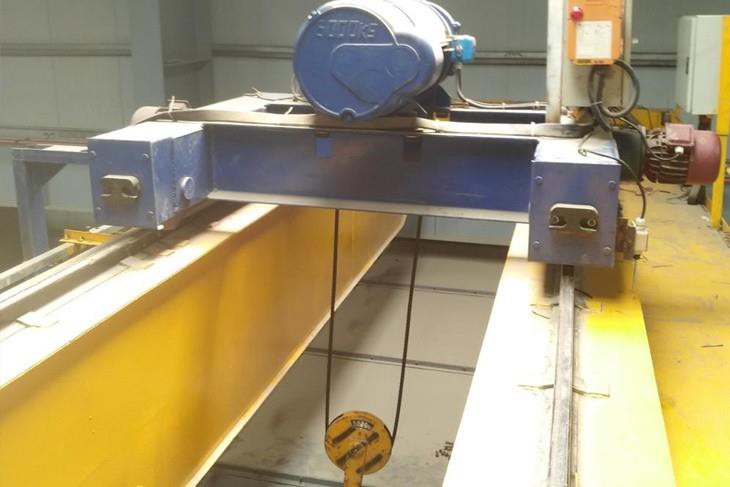

Double Girder Overhead Crane For Workshop

Feature: Bridge Crane

Condition: New

Warranty: 1 year

After-sales Service Provided: Field installation, commissioning and training, Engineers available to service machinery overseas

Place of Origin: Henan, China

Brand Name: Dowell

Certification: CE ISO SGS

Rated Lifting Moment: 100KN

Max. Lifting Load: 550t

Span: 3-32m

Max. Lifting Height: 6m~30m

Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Lifting speed: 3.5-8m/min

Lifting mechanism: Electric Hoist Trolley

Power Source: 220V~440V/50Hz/60Hz/3P

Control method: Ground operate or cabin control

Main electrical parts: Schneider Brand

Brief introduction:

LH model double girder overhead crane (bridge crane, EOT crane) is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works. It is a heavy duty type overhead crane that satisfy frequenty using.

This overhead crane(bridge crane, EOT crane) is composed of bridge, travelling mechanisms, trolley, electric equipment. The bridge frame adopts box welded structure, the crane travelling mechanism adopts separate drive withe motor and speed reducer. All mechanism are controlled in driver's cabin. Power supply adopts cable festoon and sliding wire, select one when ordering.. Features:1. Appearance: compact size, building headroom low light self-weight, pulley small

2. Adapt to the environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling

3. Working temperature: - 25 degrees ~ 40 degrees

4. Banned items: banned in inflammable, explosive, corrosive environment in use;

5. Classification: light and medium;

6. Operating methods: The ground operation and in the driver's cabin

7. The cabin: Open-style and closed style

Safety insurance:

1. Our cranes are all equipped with weight limiters, buffer, distance limit switch, voltage protection equipment, and emergency stop system and so on.

2. The equipment is controlled by central control system.

If you want to inquiry about our overhead crane, please inform us the details as below:

1. Lift capacity? (ton)

2. Span(from rail center to center)? (meter)

3. Lift height? (meter)

4. Travel length? (meter)
