New Overhead Travelling Crane
Product Model；QD
Lifting capacity: 5-450t
Span:6m - 31.5 m
Lift height: 3m - 60m
Working Duty: A3-A6
Customized service:Provide
Working Temperature: -25 to 40°C
Description
New Overhead Travelling Crane Description

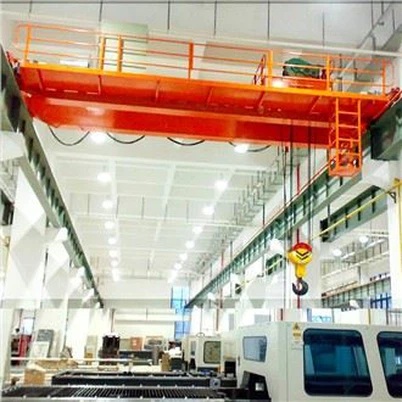

Double-beam bridge crane is also called double-beam crane or overhead crane. Its bridge runs longitudinally along the tracks laid on the elevated platforms on both sides, and the lifting trolley runs horizontally along the tracks laid on the bridge, forming a rectangular working range. It can make full use of the space under the bridge to lift materials without being hindered by ground equipment. This type of crane is widely used in indoor and outdoor warehouses, factories, docks and open-air storage yards. It is mainly composed of bridge, trolley running mechanism, trolley, electrical equipment, etc. According to the frequency of use, it is divided into three working levels: A5, A6 and A7. All its movements are completed in the driver's cab.
New Overhead Travelling Crane Drawing
Main parameters of double-beam bridge crane:
Lifting capacity: 5-10 tons, 16/3.2-50/10 tons, 75/20-100/20 tons, 100/32 tons 125/30-250/50 tons, 300/40 tons, 350/75 tons, 400/80 tons, 600/150 tons
Span: 10.5-31.5 meters, 13-31 meters.
Lifting height: 6-22 meters.
New Overhead Travelling Crane Parameters
|
Product Type: |
QD |
|
Lifting Capacity: |
5~550t |
|
Span: |
10.5~35.5m |
|
Lifting Height: |
According your demands |
|
Working Class: |
A4~A7 |
|
Ambient Temperature: |
-20~40℃ |
|
Feature |
Compact structure, new style, nice appearance Good usability and long working life Flexible operation and wide application |
advantage of Overhead Crane
1.the main beam is made of high-quality Q235 or Q345 steel plate.
2. The motor protection level is IP54, F-class insulation, and equipped with overload protection device. (Optional)
3. The gears of the reducer are helical gears, which can be automatically lubricated.
4. The operation control of the crane adopts cam control, and the driver's cab moves with the vehicle, which makes it more convenient and clear to control the position of the goods.
5. Higher working level: A5~A7, which can meet the tight operation needs of customers.
6. The operating speed adopts frequency conversion control, which makes the goods move and land more safely and accurately.
New Overhead Travelling Crane Security protection
1.lifting weight limiter
2. Polyurethane buffer
3. Travel limit switch
4. Pressure loss protection function
5. Emergency stop system
6. Height limiter
