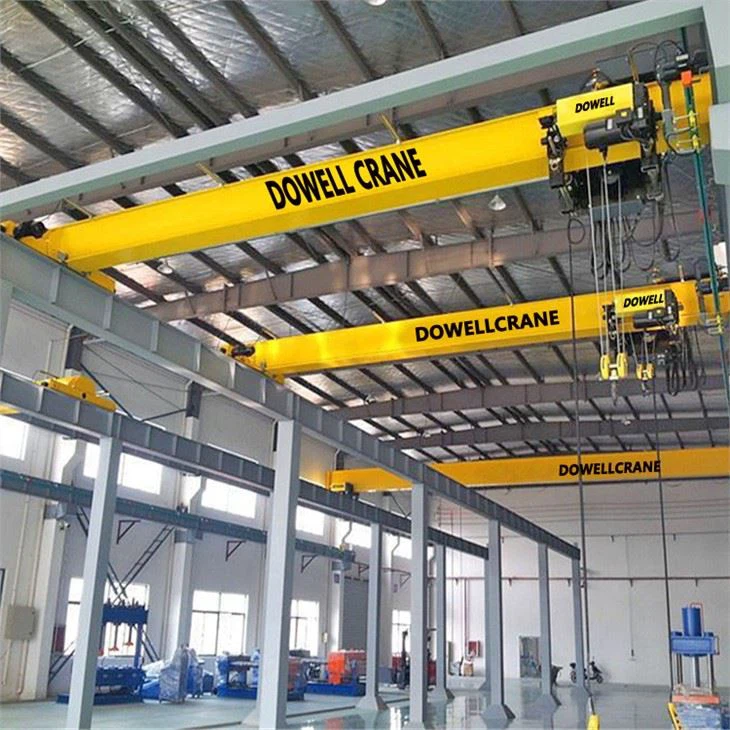

2 Ton Overhead Crane For Sale
Single girder overhead crane features: 1:All brakes are maintenance-free electric disk brakes that are braked during a power outage to ensure safe, maintenance-free design, that is, after the brake pads are worn, the brake gap can be automatically compensated and the automatic thickness limit...
Description
2 Ton Overhead Crane For Sale
Product Application

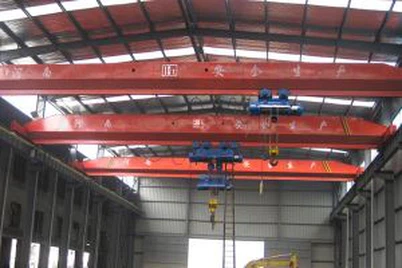

European type single girder overhead cranes utilized for medium to heavy fabrication.. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.
The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.
 | single girder overhead craneThe capacity:1-30ton |
explosion proof overhead craneThe capacity:1-10ton |  |
 | low headroom overhead craneThe capacity:2-30ton |
suspension overhead craneThe capacity:0.5-5ton |  |
 | european type overhead craneLifting capacity: 0.25-30ton |

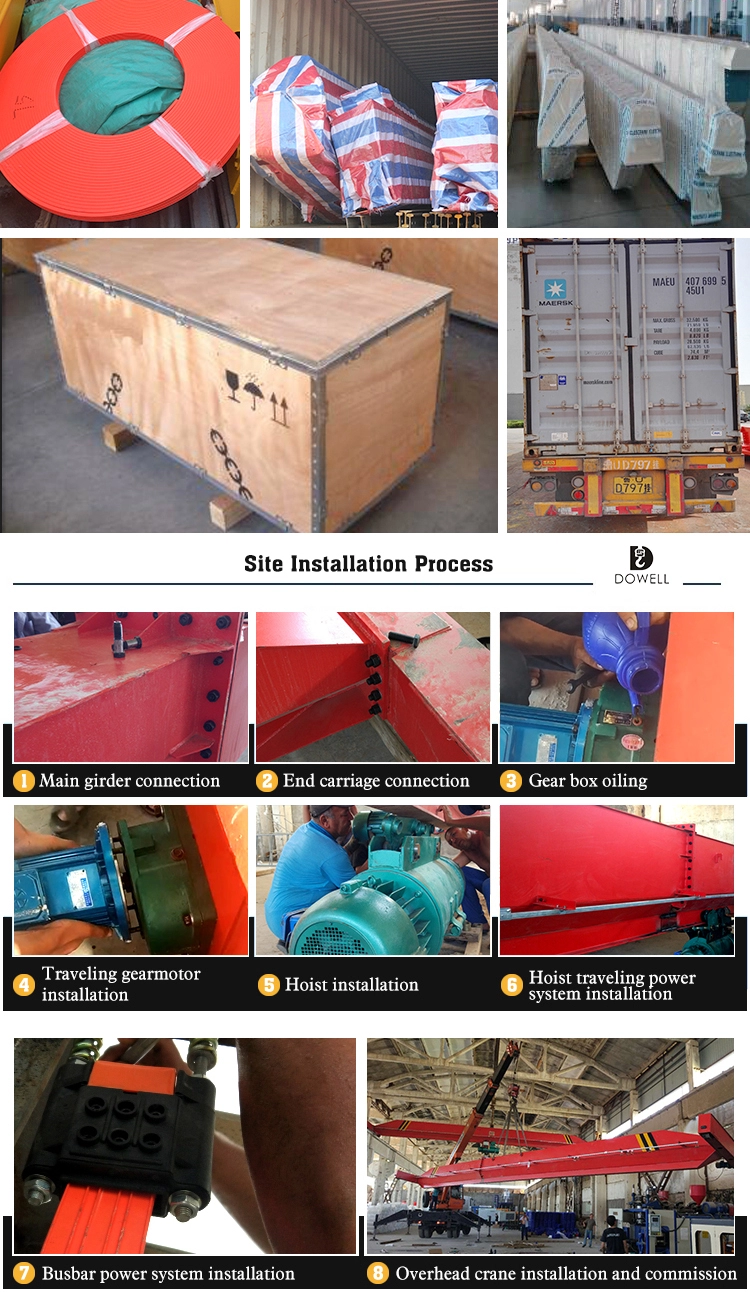

Packing & Delivery terms:
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
| No. | Item | specification | ||||
| 1 | Safe working Load | 16T | ||||
| 2 | Span(gauge) | 21.6m | ||||
| 3 | Lifting Height | 9M | ||||
| 4 | Crane traveling Length | 64M | ||||
| 5 | Working Class | ISO A3 / FEM 1Am | ||||
| 6 | Static Testing of Main Girder | 1.25 | ||||
| 7 | Dynamic Testing of Main Girder | 1.1 | ||||
| II-Hoisting Trolley Assembly | ||||||
| 8 | Capacity | 16T | ||||
| 9 | Working System | ISO M3 / FEM 1Am | ||||
| 10 | Main Lifting | Motor Model | HC 16T | |||
| Speed | 3.5M/Min | |||||
| Power | 18.5Kw | |||||
| 11 | Trolley traveling | Power | 4*0.8KW | |||
| Speed | 20m/min | |||||
| 12 | I steel specification(GB706-88) | 32-45C | ||||
| III-Crane Traveling Mechanism | ||||||
| 13 | Span | 21.6m | ||||
| 14 | Working System | ISO M3 / FEM 1Am | ||||
| 15 | Motor power | 2x2.2 | ||||
| 16 | Max. Wheel Pressure | 102.3Kn | ||||
| 17 | Track Rail Type | P38 | ||||
Hot Tags: 2 Ton Overhead Crane For Sale China, manufacturers, suppliers, customized, quotation, offer, price
