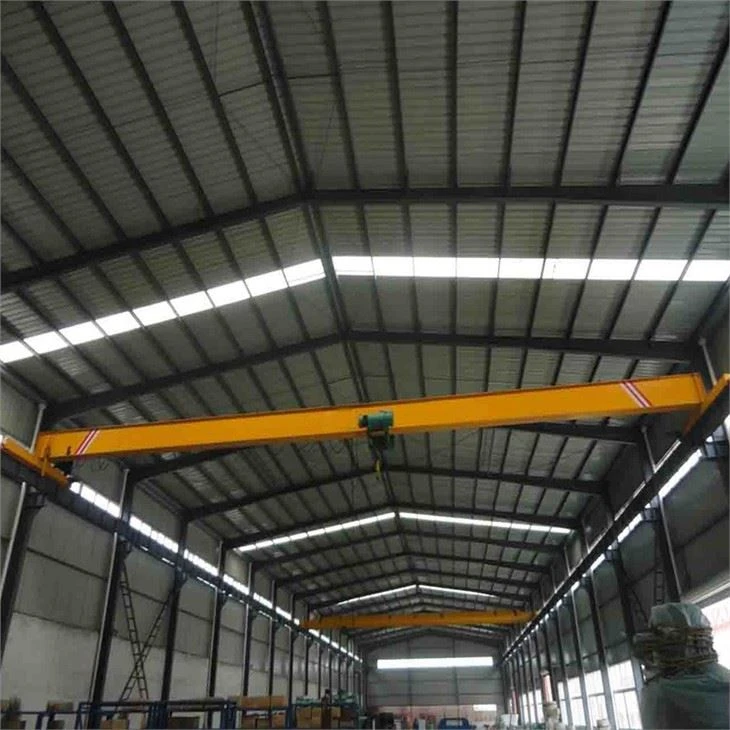

Portable Steel Overhead Bridge Crane 10 Ton

 Portable Steel Overhead Bridge Crane 10 ton

 Portable Steel Overhead Bridge Crane 10 ton Description

One of the most common misconceptions about single girder cranes is that they are not as durable or of the same high quality as double girder cranes. If properly designed, a single girder crane can be the perfect solution for a business that needs a light to medium duty crane, or for a facility where headroom and/or floor space is limited.

Single girder bridge cranes are often the most cost-effective lifting solution for various applications and industries. Single girder cranes use less material and are more compact and lightweight than a double girder crane, which results in a significant cost-savings in material, freight, and installation. Also, because they only require one bridge beam, these systems typically have less deadweight, meaning they can utilize lighter runway systems and tie into the existing building support structure.

Portable Steel Overhead Bridge Crane 10 ton Advantages

1. Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the bridge and runway beams

2. Most economical option for light to medium-duty cranes

3. Lower loads on the building structure or foundations due to a reduced deadweight. In many cases, it can be supported by existing roof structure without the use of additional support columns.

4. Better hook approach for both trolley travel and bridge travel

5. Easier to install, service, and maintain

6. Ideal for workshops, warehouses, material yards, and manufacturing and production facilities

7. Lighter load on runway rails or beams means less wear on the beams and end truck wheels over time

8. Great for facilities with low headroom

Portable Steel Overhead Bridge Crane 10 ton  Parameters

Parts of crane

NO.1 Design of Main Girder

1. Welded box type with compact design; 2. Improve the high utilization rate of the workshop and maximize the net lifting height ; 3. Elegant appearance.

NO. 2 Design of Festoon Cable

1.C steel trolley design to get nice appearance; 2. Clean flat cable and smooth operation the electric hoist; 3. Easy to be maintained and replaced

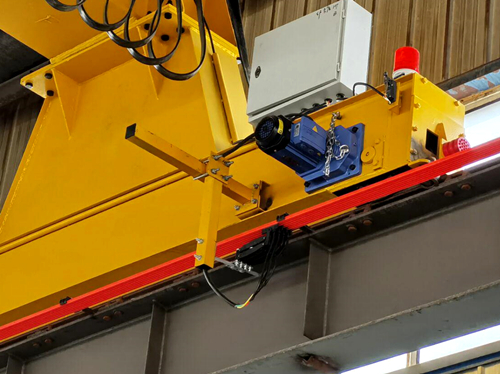

NO. 3 Design of Support Frame for Current Collector

1. Special support frame for current collector; 2. Connect with prefabricated base by bolts, easy to be mounted; 3. Elegant appearance

FAQ?

If you want to get a price of our Overhead Crane, please help to confirm the details as below:

1. What kind of materials will this overhead crane equipment deal with?

2. Lift capacity? 3 ton, 5 ton, 10 ton or 16 ton?

3. Span? Or your can tell us width of your workshop, then we will design?

4. Lift height? 6 meters, 9 meters or 12 meters?

5. Travel length? Or you can tell us length of your workshop, then we will design?

6. Power supply in your local? Is 380V/50Hz/3P?

7. Nearest sea port? We will quote you a CFR price for your reference.
