Product Name: Container Crane
Feature: Gantry Crane
Max. Lifting Height: 13m
Span: 18-35m
Duty class: A6-A8
Industrial Voltage: According to your request
Place of Origin: Henan, China
Warranty: 3 Years
Condition: New

Send Inquiry

Description

50 ton RTG gantry crane Description

RTG (Rubber Tyred Gantry) crane is a type of lifting equipment commonly used in container ports. It is a mobile crane that operates on rubber tires and travels on a gantry system. RTG cranes are ideal for handling large and heavy containers and are built with a wide range of lifting capacities to suit different applications.

The RTG crane typically has two main beams that support the spreader, which is used to lift and move containers. The spreader can be adjusted to match the size of the container, which makes the RTG crane a versatile solution for container handling operations.

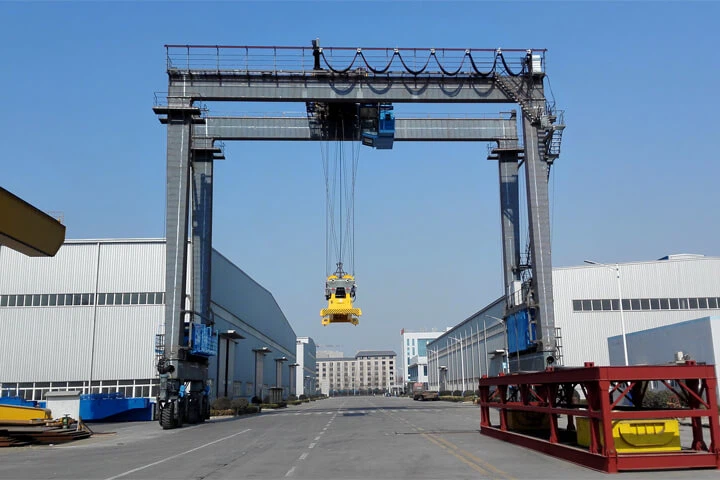

mobile-container-crane

50 ton RTG gantry crane Parameters

Capacity	Under spreader 35tons
Duty Class	A6~A8
Span(rail to rail center)	30m or as required
Material handling	20’ 40’ 45’container
Cantilevers	According to your demand, but not more than 1/3 of span
Lifting height	16m or as required
Spreader	20' or 40' or 45’ telescopic spreader
Lifting speed(m/min)	0~20
Cross travelling speed(m/min)	0~30
Long travelling speed(m/min)	0~40
Power source	AC 380V 50HZ 3Ph (or other standard)
Control model	Cabin
Max.wheel pressure(KN)	290
Rail model	QU80

50 ton RTG gantry crane Drawing

-r2c1

50 ton RTG gantry crane Features

One of the key advantages of the RTG crane is its mobility. The rubber tires allow it to move swiftly, and the gantry system provides a stable platform for lifting operations. This mobility also means that the RTG crane can be easily moved to different areas of the port to handle containers as required.

The RTG crane also features advanced automation technology, which helps to improve efficiency, reduce turnaround times and increase safety. Control systems can be integrated with other port systems to provide seamless operation and real-time data on container movements.

Overall, the RTG crane is a reliable, efficient and versatile lifting solution for container ports. With its advanced automation technology, it is well-suited to handle the demands of modern container handling operations.

RTG Crane2

The RTG crane is also environmentally friendly. Because it operates with rubber tires, it produces less noise and emissions compared to other types of cranes. This feature makes it an ideal solution for port operators looking to reduce their carbon footprint. In conclusion, the RTG crane is a reliable, efficient and versatile solution for container handling operations at ports.

The advanced automation technology and mobility allow for higher efficiency, faster turnaround times, and real-time data tracking, while reducing environmental impact.
