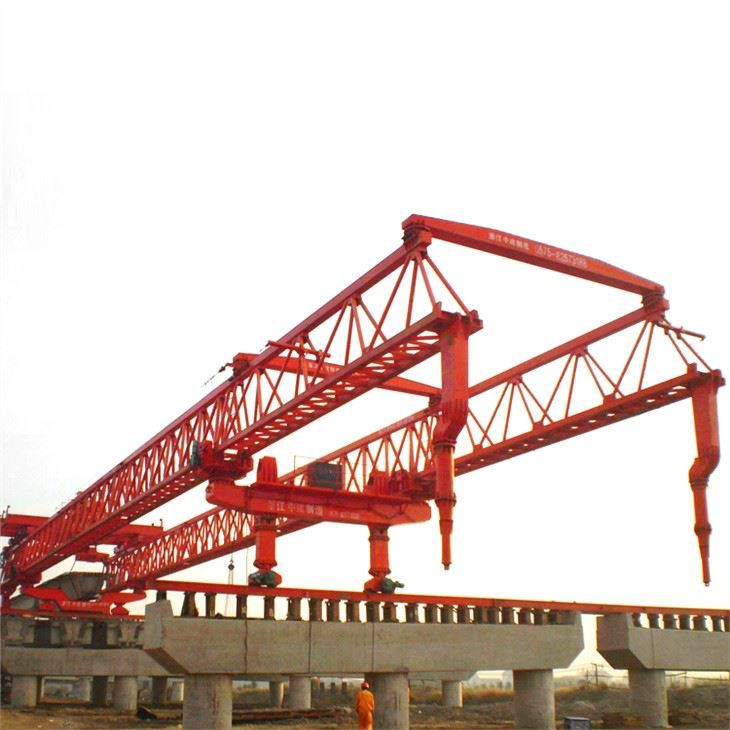

50-200ton Bridge Erection Beam Launcher Crane
Launching Gantry, beam launcher crane, Erection Machinery manufacturer / supplier in China, offering 50-200ton bridge erection beam launcher crane
Description
Products Description
Product Paramenters
Max Span | 50m | 40m | 35m | 30m |
Hoist Capacity 160t | 100t | 80t | 60t | |
Lifting Speed of Trolley | 0.8m/min | 0.8m/min | 0.8m/min | 0.8m/min |
Moving Speed of Crane | 4.5m/min | 4.5m/min | 4.5m/min | 4.5m/min |
Moving Speed of Crane | 2.7m/min | 2.7m/min | 2.7m/min | 2.7m/min |
Loading Capacity | 80t×2 | 50t×2 | 40t×2 | 30t×2 |
The Speed of Heavy Load | 4-8m/min | 4-8m/min | 4-8m/min | 4-8m/min |
The Speed of Empty Load | 18m/min | 18m/min | 18m/min | 18m/min |
Max Angle of Inclined Bridge | 45° | 45° | 45° | 45° |
Bridge Beam Launcher Crane is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and folding technology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.
Details Images
Application
Our Advantages
1.Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery. 2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation. 3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
Installation Instructions
Exhibition
After-sale Service
