Chain Hoist Electric

Lifting Capacity:0.5ton-32 ton
Voltage:220V-440V
Phrase:3
Lifting height:6m-30m
Certification:CE ISO
Color:Customized
Condition:New
Warranty:3 Year

Send Inquiry

Description

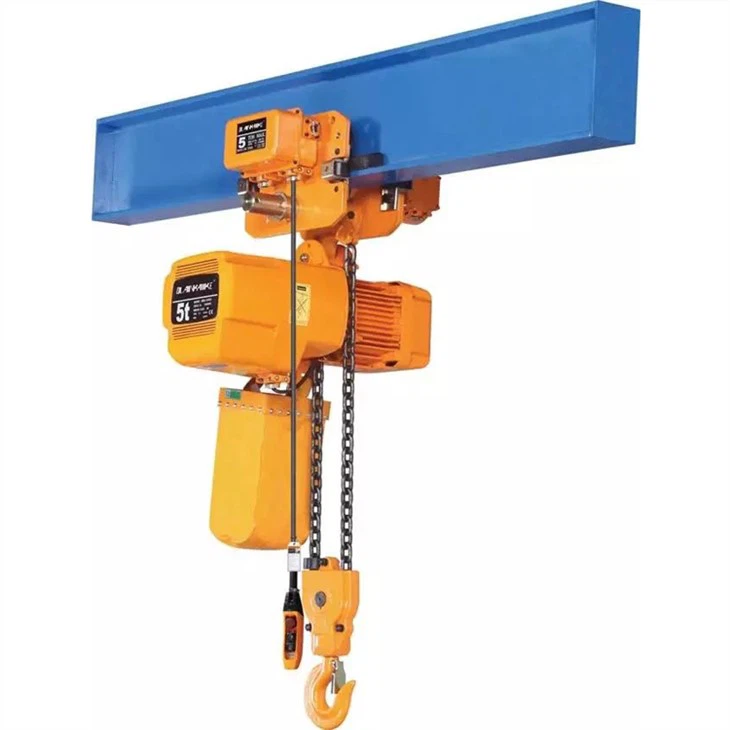

Chain Hoist Electric Description

Electric chain hoist is a light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. It adopts the most advanced technology in the world, with fine workmanship and tight fit between the gears.

Chain Hoist Electric Drawing

Chain Hoist Electric Parameters

Loading capacity	0.5 ~ 50t
Lifting height	3 ~ 130 m or customized
Lifting speed	Single speed: 6.6 m/min; or customized Variable frequency speed: 0.66 ~ 6.6 m/min; or customized
Working class	M3 ~ M7
Working temperature	-20 ~ 40 ℃
Power supply	AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage	DC-36 / 48V
Motor protection class	IP54 IP55 IP65
Control way	Ground handle control(Push button),wireless remote control,cabnient control
Safety device	Buffer,current overload protection,overload device,power failure protection
Application area	Factory,workshop,warehouse,power station,logstic,etc.
Painting color	Yellow,Red or Customzied
Remarks:Above parameter just for your reference,specical requirements can be customized based on clients' demands.
