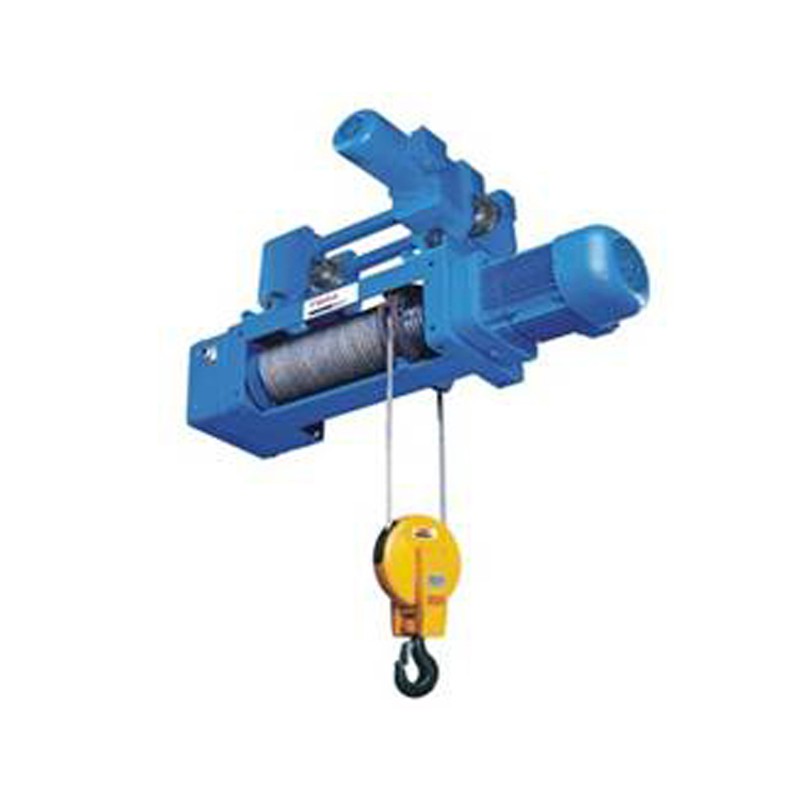

10 Ton Electric Wire Rope Hoist Description
An electric wire rope hoist is a type of lifting equipment that uses an electric motor and a wire rope to lift and lower heavy loads. It is commonly used in industrial settings, construction sites, and warehouses for material handling and lifting operations.Electric wire rope hoists provide a reliable and efficient solution for lifting and moving heavy objects. They are designed for heavy-duty applications and are capable of handling loads with precision and control. It is important to follow safety guidelines and manufacturer recommendations when operating an electric wire rope hoist to ensure safe and efficient lifting operations. Regular maintenance and inspections are also necessary to ensure the hoist's optimal performance and longevity.
10 Ton Electric Wire Rope Hoist Drawing
Explosion-proof electric hoist is a light and small lifting equipment. It has light weight, small size and large lifting capacity. When the factory is filled with explosive mixture, it is a favorable tool to improve working conditions and increase labor productivity under the premise of ensuring safety. It is an essential mechanical equipment for production.
10 Ton Electric Wire Rope Hoist parameters
|
Model |
CD/MD 0.25t |
CD/MD 0.5t |
CD/MD 1t |
CD/MD 2t |
CD/MD 3t |
CD/MD 4t |
CD/MD 5t |
|
|
Lifting Weight |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
|
Lifting Height(m) |
3-9 |
6-12 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
|
|
Lifting Speed(m/min) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
7(7/0.7) |
|
|
Running Speed |
20(30) m/min |
|||||||
|
Wire Rope Model |
6×19-3.6 |
6×37-4.8-180 |
6×37-7.4-180 |
6×37-11-155 |
6×37-13-170 |
6×37-15-200 |
6×37-15-200 |
|
|
I-beam Track Model |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
25a-63c |
28a-63c |
|
|
Minimum radius of circular orbit(m) |
0.8 |
1.5 |
1.5-4 |
2-4 |
2-4 |
2.5-5 |
3.5-9 |
|
|
Lifting Motor |
Motor |
ZD12-4 |
ZD21-4 |
ZD22-4 |
ZD31-4 |
ZD41-4 |
ZD41-4 |
ZD51-4 |
|
ZDS0.2/1.5 |
ZDS0.2/1.5 |
ZDS0.4/3 |
ZDS0.4/4.5 |
ZDS0.8/7.5 |
ZDS1.5/13 |
|||
|
Capacity |
0.4 |
0.8 0.2/0.8 |
1.5 0.2/1.5 |
3 0.4/3 |
4.5 0.4/4.5 |
7.5 0.8/7.5 |
13 1.5/13 |
|
|
rotation rate |
1380 |
1380 |
1380 |
1380 |
1380 |
1400 |
1400 |
|
|
Power supply |
3P 380V 50HZ |
|||||||
feature of 10 Ton Electric Wire Rope Hoist
why choose us
Novel structure
Compact structure, easy operation, light weight and small size.
Stable performance
The whole machine runs smoothly, has low noise, is flexible to operate, and is easy to install and use.
Various models
Can be customized according to customer's operation requirements, carefully selected materials, and various specifications and models.
Save time and effort
It occupies a small area and is easy to operate and maintain. It is an energy-saving assembly line lifting equipment.
