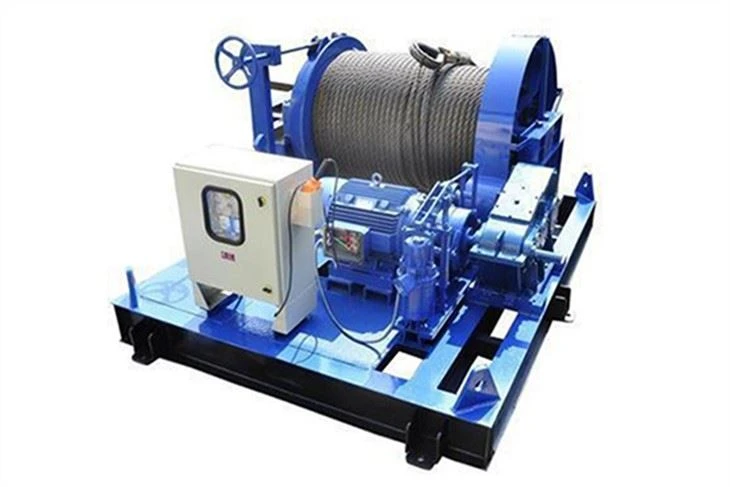

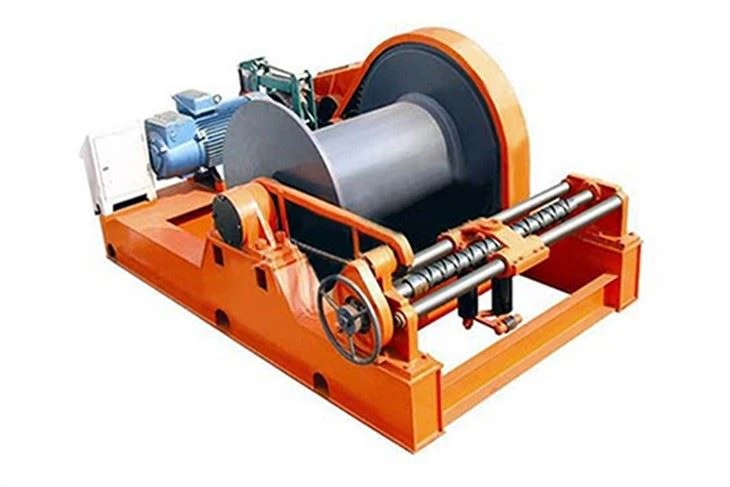

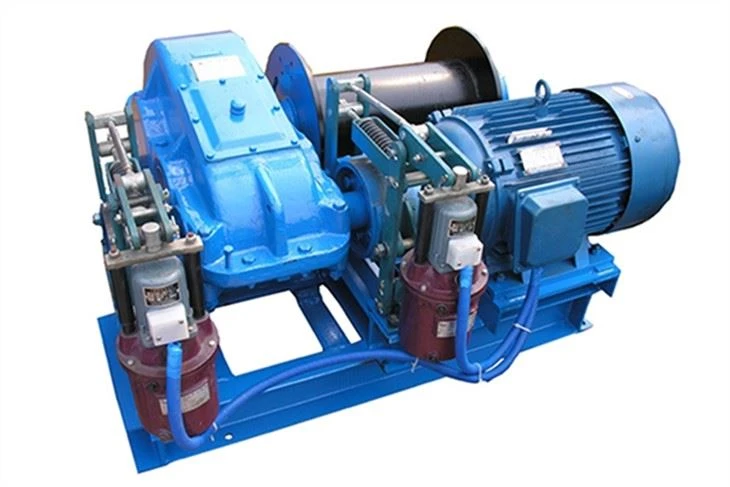

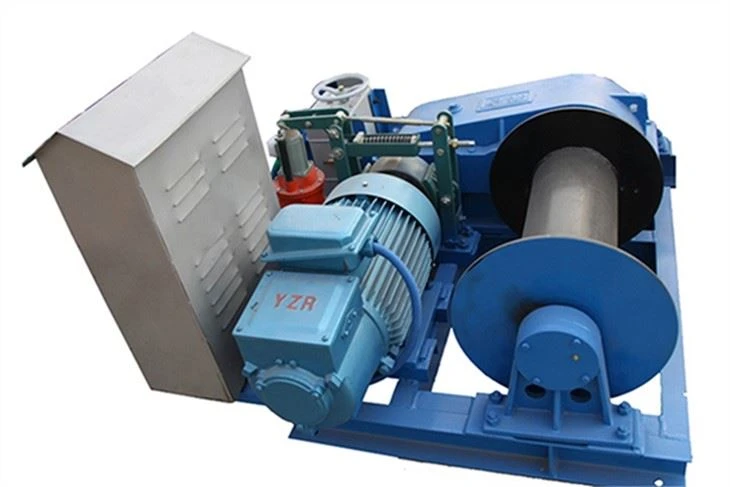

High Performance Electric Winch 10 Ton
High performance electric winch 10 ton Feature of Wirerope electric winch 10 ton: 1) Reasonable structure and design hoist 2) Easy to install and Maintenance 3) High efficiency and stable performance 4) Top quality with competitive and economic price 5). Double Speed: Low Speed and Normal Speed...
Description
Products Description High Performance Electric Winch 10 Ton
Product Paramenters
Model | Rated load(KN) | Rated speed (m/min) | Rope capacity (m) | Rope diameter (mm) | Motor model | Motor model (KW) | Overall dimensions(mm) | Total weight (kg) | |
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 | |
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 | |
JM3.2 | 32 | 10 | 150 | 15.5 | YZR16M2-6 | 7.5 | 1430*1160*910 | 1100 | |
JM5 | 50 | 10 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1500 | |
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2600 | |
JM8B | 80 | 9.5 | 350 | 26 | YZ180L-6 | 15 | 1075*1589*985 | 2500 | |
JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 | |
JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 | |
JM12.5 | 20 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 | |
JM13.5 | 32 | 5 | 290 | 28 | YZP225S-8 | 22 | 2990*2363*1650 | 6500 | |
JM16 | 32 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 | |
JM20 | 50 | 10 | 600 | 43 | 45YZR280S-8 | 55 | 3950*2560*1950 | 9900 | |
JM25 | 50 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 | |
JM32 | 50 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2030 | 14800 | |
JM50 | 50 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 | |
JM65 | 50 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
Safety device:
1.Double limit switch.
2. Current overload protection device
3. Buffer.
4. Weight overload protection device.
5. Emergency brake.
Details Images
Application
Our Advantages
Product packaging
1.Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery. 2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation. 3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
Exhibition
After-sale Service
