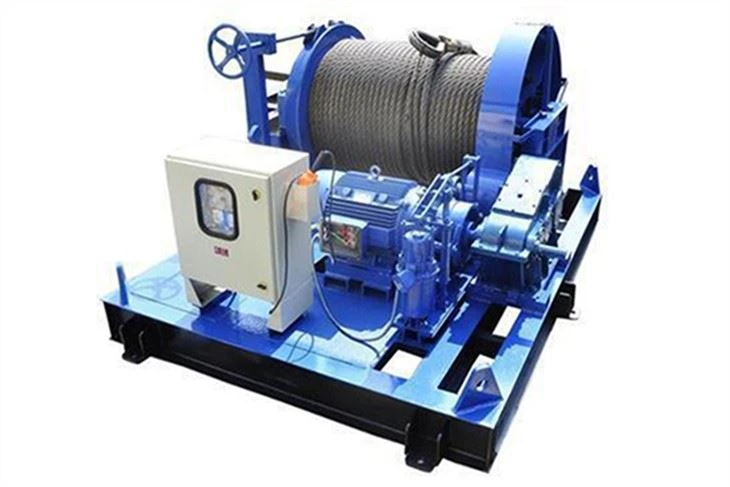

Wire Rope Winch Manual
wire rope winch manual Mainly used in building, water conservancy engineering, forestry, mining, wharf and other materials lift or level drag.
Description
Products Description
A winch is a small and light lifting device that uses a drum to wind a wire rope or chain to lift or pull heavy objects. It is also called a winch. The winch can lift vertically, pull heavy objects horizontally or tilted. There are three types of winches: manual winches, electric winches and hydraulic winches. Electric winches are the main type now. They can be used alone or as a component of machinery for lifting, road construction and mine hoisting. They are widely used because of their simple operation, large rope winding capacity and convenient relocation.
FACTORY DIRECT SALES PROFESSIONAL HOME CUSTOMIZATION
Products application
application
Mainly used for lifting or flat dragging of materials in construction, water conservancy projects, forestry, mining, docks, etc.
Products Details
PRODUCT DETAIL DISPLAY
01
Pure copper motor
Pure copper motor has the characteristics of magnetic inductance, high melting point and low loss, and large heat dissipation port
02
High-quality reel
The reel is made of seamless steel pipe, which is strong, durable and will not deform.
03
Channel steel base
Thickened channel steel base enhances machine stability
04
Stainless steel housing
The motor housing is made of high-quality stainless steel to protect the internal parts and assemble them tightly
Products parameter
comparison of product parameters
|
Basic Parameters |
Rated Load |
Average Speed of Rope |
Capacity of Rope |
Rope Diameter |
Hydraulic Brake |
Motor Power |
Overall Dimension |
Total Weight |
|
Model |
KN |
m/min |
m |
mm |
Type |
KW |
mm |
kg |
|
JM0.5 |
5 |
16 |
90 |
7.7 |
TJ2-100 |
2.2 |
820X670X330 |
120 |
|
JM1 |
10 |
16 |
120 |
9.3 |
TJ2-150 |
5.5 |
830X670X330 |
220 |
|
JM1.5 |
15 |
16 |
160 |
11 |
TJ2-200 |
7.5 |
1150X900X510 |
310 |
|
JM2 |
20 |
16 |
150 |
12.5 |
TJ2-200/YWZ-200/25 |
7.5 |
1190X925X550 |
350 |
|
JM3 |
30 |
16 |
200 |
12.5 |
TJ2-200/YWZ-200/25 |
11 |
1250X1037X560 |
450 |
|
JM5 |
50 |
9 |
200 |
19.5 |
YWZ-300/45 |
11 |
1568X1300X765 |
1000 |
|
JM5 |
50 |
9 |
200 |
19.5 |
YWZ-300/45 |
15 |
1568X1350X765 |
1100 |
|
JM8 |
80 |
9 |
300 |
26 |
YWZ-300/45 |
15 |
1950X1570X1040 |
1800 |
|
JM8 |
80 |
15 |
300 |
26 |
YWZ-300/45 |
22 |
1950X1630X1040 |
1900 |
|
JM10 |
100 |
9 |
300 |
30 |
YWZ-300/45 |
22 |
2100X1700X1050 |
2200 |
|
JM10 |
100 |
15 |
300 |
30 |
YWZ-300/45 |
30 |
2100X1700X1050 |
2400 |
|
JM12 |
120 |
9 |
300 |
32 |
YWZ-300/45 |
22 |
2200X1800X1006 |
2500 |
|
JM16 |
160 |
9 |
400 |
36.5 |
YWZ-400/90 |
30 |
2330X2250X1320 |
4000 |
|
JM20 |
200 |
9 |
450 |
39 |
YWZ-400/90 |
45 |
2450X2315X1400 |
4500 |
|
JM30 |
300 |
9 |
450 |
47.5 |
YWZ-400/90 |
55 |
2600X2700X1740 |
7800 |
