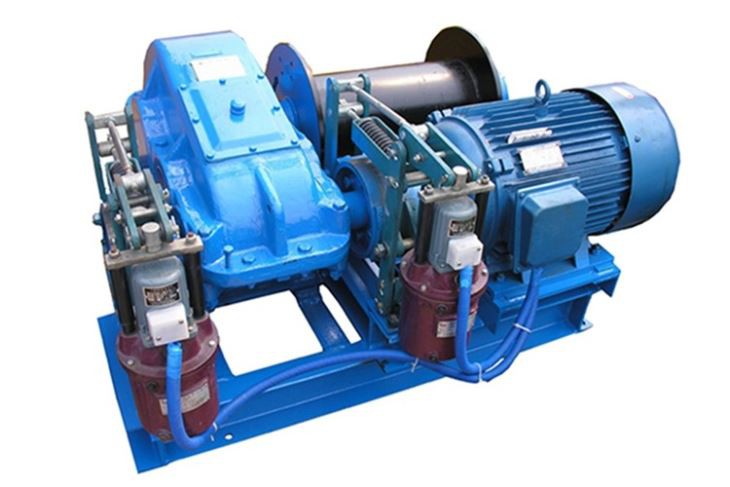

Vertical Or Horizontal Mounted 20t Electric Motor Driven Winch
video
Vertical Or Horizontal Mounted 20t Electric Motor Driven Winch

Vertical Or Horizontal Mounted 20t Electric Motor Driven Winch

The hoist is also called a winch. It is an important part of lifting vertical transportation machinery. It is a device that is used to lift materials and install equipment in conjunction with auxiliary equipment such as derricks, masts, and pulleys. It is a device that uses human or mechanical...

Description

Products Description

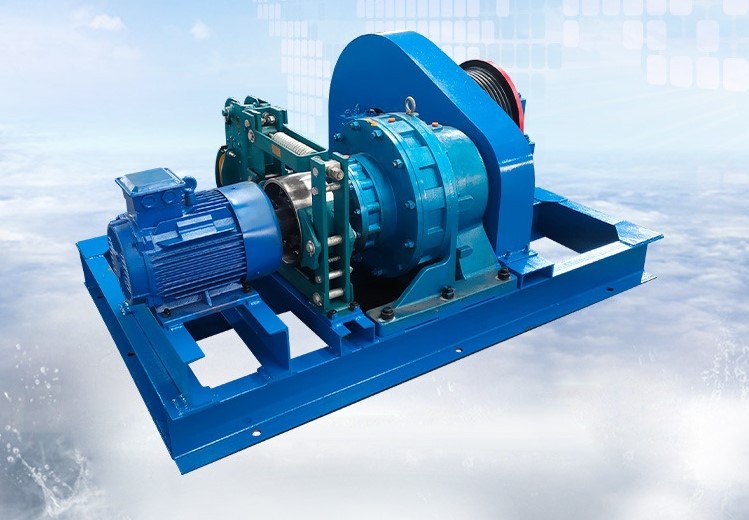

1

A winch is a small and light lifting device that uses a drum to wind a wire rope or chain to lift or pull heavy objects. It is also called a winch. The winch can lift vertically, pull horizontally or tilt heavy objects. There are three types of winches: manual winches, electric winches and hydraulic winches. Electric winches are the main type. It can be used alone or as a component of machinery for lifting, road construction and mine hoisting. It is widely used because of its simple operation, large rope winding capacity and convenient relocation. It is mainly used for lifting or flat towing materials in construction, water conservancy projects, forestry, mining, docks, etc.

Coaxial winch: (also called micro winch) the motor and wire rope are on the same transmission shaft, which is light and compact and saves space (its tonnage includes 200 kg, 250 kg, 300 kg, 500 kg, 750 kg, 1000 kg, etc.).

Slow winch: a winch with a rated speed of about 7~12m/min for the wire rope on the drum.

Fast winch: a winch with a rated speed of about 30m/min for the wire rope on the drum.

Electric winch: a winch that uses an electric motor as power and rotates the drum through a drive device.

Speed-adjustable winch: a winch with adjustable speed control.



comparison of product parameters

Model

Rated Load

Rated Speed

Rated Power

Rope Diameter

Rope Capacity

Overall Dimension

Total Weight



kn

m/min

kw

mm

m

mm

kg

JK0.75D

7.5

30

9.3

9.3

100

900*340*400

165

JK1.25D

12.5

46

11

11

120

1140*400*450

315

JK1.60D

16

28

12.5

12.5

160

1200*440*480

350

JK2.0D

20

36

13

13

190

1400*470*548

510





product advantage
1
01.



High-power copper core motor
Higher power, faster speed, energy saving

02.



Cylindrical gear reducer
Light weight, helical teeth, high load-bearing capacity, long life, small size and light weight.

2



Products Details





1



Electromagnetic brake

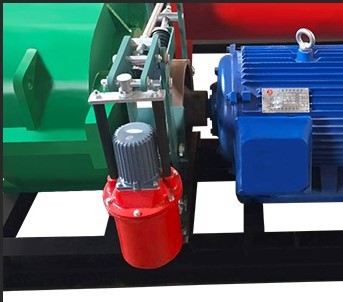

Hydraulic brake



2
3

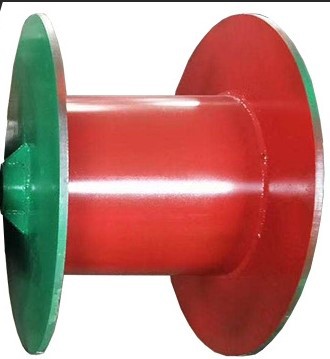

Thickened roll





Thickened base



4
