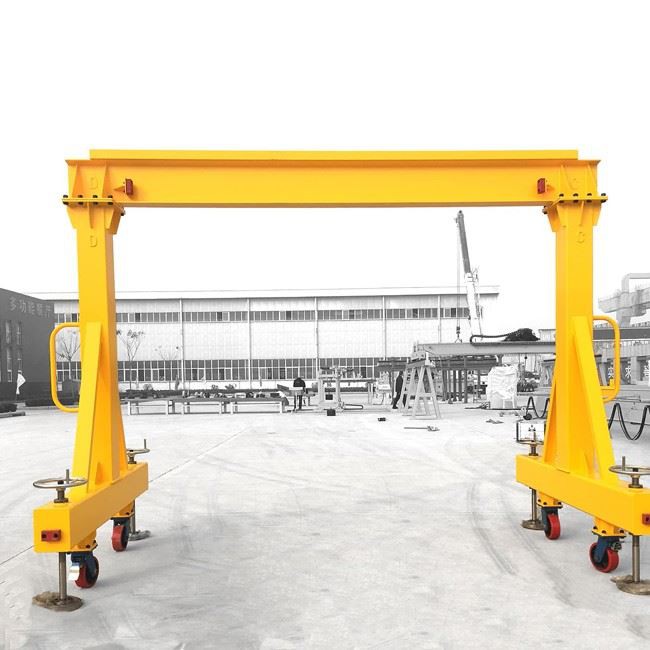

2t Mobile Gantry Crane

Place of Origin: Henan, China
Core Components: Gearbox, Motor
Lifting height: 2m-20m
Hoist type: Electric or Manual
Material: Steel or aluminium
Traveling type: Electric or Manual
Color: Customized
Warranty: 3 Years
Customization: accept

Send Inquiry

Description

2t Mobile Gantry Crane Description

Moveable gantry crane are designed for transporting and lifting materials.

The moveable gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 20000 kg weight, span up to 20 meters.

It is specially apply to yard and workshop equipment installation, transportation. It can move on the ground, with electric hoist or manual hoist, chain blocks or monorail car accessory, realize the mechanization of hoisting, can reduce manpower and production costs, improve work efficiency.

2t Mobile Gantry Crane Features

1. Bolt connection

All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.

2. Nut embeded design

Ground beam has a nut embeded designing. This makes the assemble work very simple. All bolts and nuts are matched perfectly.

3. Span alternative

Client can order differnet span of beams to meet the same legs. It can be assembled according to different working site.

4. Other features

Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.

2t Mobile Gantry Crane Design Drawing

2t Mobile Gantry Crane Parameters

Capacity	t	0.5	1	2	3	5	10
Span	S(m)	2~16	2~16	2~16	2~16	2~16	2~16
Lifting height	m	2~12	2~12	2~12	2~12	2~12	2~12
Lifting speed	m/min	7.2（7.2/2.4）	6.6（6.9/2.3）	6.6（6.9/2.3）	5.4（5.4/1.8）	2.7（2.7/0.9）	2.7（2.7/0.9）
Trolley speed	m/min	11(21)	11(21)	11(21)	11(21)	11(21)	11(21)
Crane speed	m/min	manually operation/motor-driven	manually operation/motor-driven	manually operation/motor-driven	manually operation/motor-driven	manually operation/motor-driven	manually operation/motor-driven
Work duty		A2	A2	A2	A2	A2	A2

2t Mobile Gantry Crane Features

● Light weight ,five times the safety factor

● Easy operation ,wireless controller available move under load ,Smooth starting and stopping

● Easy operation Control by Pendent controller with push buttons or wireless controller, control the gantry moved front and back, the hoist travelling left and right, lift up and down.

● Portable design allows for relocation for use in more than one facility or work area.
