16 Ton Double Girder Gantry Crane
The span: 18-35m
The capacity:10-500ton
The working grade: A5
Gantry Crane is widely used in warehouse, freight yard, terminals and other places.
Description
16 Ton Double Girder Gantry Crane
Production Introduction
Gantry cranes (also called Goliath cranes) are supported by two legs on bridges on ground rails. In structure, it consists of door frame, cart running mechanism, lifting trolley and electrical components. Some gantry cranes only have outriggers on one side, and a workshop or trestle on the other side to support them during operation, which is called a semi-gantry crane. The gantry part of the gantry crane is the bridge (including the main beam and the end beam), the outrigger, the lower beam and so on. In order to expand the working range of the crane, the main beam can extend out the outriggers to one side or both sides to form a cantilever. It is also possible to use a lifting trolley with a boom to expand the working range of the crane through the pitch and rotation of the boom.
This model gantry crane is a general-purpose crane, which is widely used in open fields and warehouses to grab materials. The control methods of the gantry crane include ground control and cab control. For use with electric trolleys. It is a small and medium-sized crane with crawler walking. Its suitable lifting weight is 5 to 10 tons, its suitable span is 12 to 30 meters, and its suitable working temperature is -25°C to 40°C
Production Paramenters
Item | Data |
Capacity(NOT including spreader | 30.5-40.5t |
Span | 15.4-23.47m |
Lifting height | 18.2m |
lifting speed | 12-46m/min |
cross travelling speed | 45-70m/min |
long travelling speed | 45-100m/mim |
Working class | ISOA6-A7/FEM3M-FEM4M |
Power source | as your demands |
Other | According to your specific usage, specific model and design will offer |
Production Features
Gantry cranes with the runway located on the floor can be used where the overhead crane or bridge is not practical.
Gantry cranes are more cost-effective comparing with the overhead crane system.
Types of gantry cranes have a wide application. Gantry can be used indoors and outdoors. Gantry cranes can be used when the existing factory structure which cannot bear the wheel loads of the overhead crane; or loads needs to be handled outside the crane span and when the relocation of the crane is required after the work at a certain site is completed.

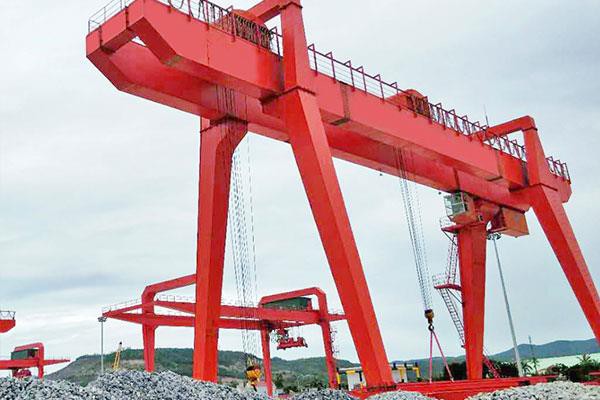

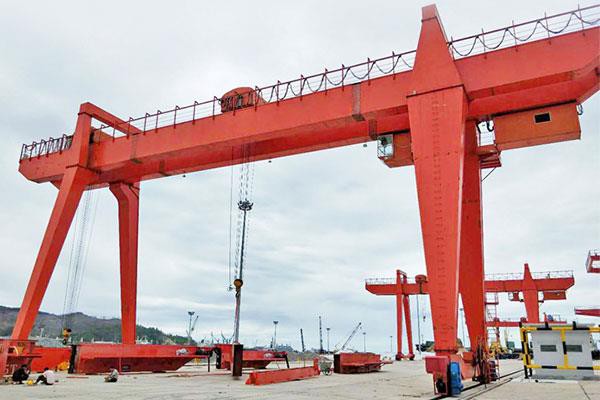

Details Images
Production Packaging
The main girder and end truck are packed in woven bags to reduce wear during transportation.
The container is fixed with steel wire rope to prevent damage to the equipment during transportation.
The electronic control components are packed in high-quality plywood crates to prevent moisture, sun and rust.
