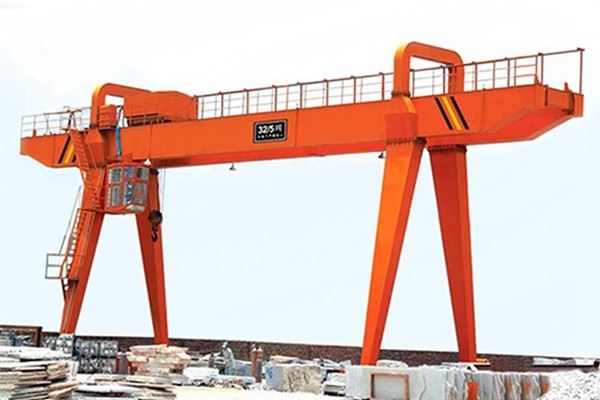

Port Lifting Gantry Crane

The span: 18-35m
The capacity:10-500ton
The working grade: A5
Gantry Crane is widely used in warehouse, freight yard, terminals and other places.

Send Inquiry

Description

Products Description

202101211113268186453

Application of port lifting gantry crane

202101211113261914932

Product Paramenters

Item	Data
Capacity(NOT including spreader	30.5-40.5t
Span	15.4-23.47m
Lifting height	18.2m
lifting speed	12-46m/min
cross travelling speed	45-70m/min
long travelling speed	45-100m/mim
Working class	ISOA6-A7/FEM3M-FEM4M
Power source	as your demands
Other	According to your specific usage, specific model and design will offer

16 Ton Gantry Crane Safety devices 1. Overload Limiter ; Limit Switch (Lifting and Traveling) ; Short-circuit protection. 2. Interlock protection device ; Under-voltage protection ; Buffer ; Zero protection. 3. Rail tongs, Anchor device and Motor overload protection. 4. Rail clear plate and e mergency stop system. 5. Protective cover and c urrent overload protection system. 6. Bus Bar prevent plate and s ecurity chain protection. 7. Anti-collision device and g round protection.
