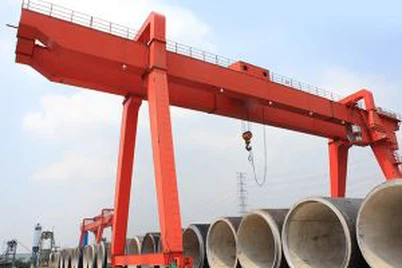

Electric Rail Mounted Gantry Crane
High quality electric rail mounted gantry crane price manufacturer for sale also called door crane or goliath crane, it is a kind of track travelling mid-heavy type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be accommodated. The top main...
Description
High quality electric rail mounted gantry crane price manufacturer for sale also called door crane or goliath crane, it is a kind of track travelling mid-heavy type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be accommodated. The top main girder is mounted on two A shape columns which are further resting on wheel mounted end carriages.
This crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.
It could be special design and customize by clients' requirement.
Main technical parameter:
| Rated load/ton | 50 | 75 | 100 | 150 | 200 |
| Span/m | 10-40 | ||||
| Lifting height/m | 30 | ||||
| Working class | A5/2M | ||||
| Lifting speed/m/min | 5.9 | 6.0 | 4.4 | 3.2 | 2.4 |
| Trolley running speed/m/min | 38.4 | 38.4 | 33.8 | 30 | 25 |
| Crane running speed/m/min | 30 | 30 | 30 | 30 | 30 |
| Dead weight/t | 112~185 | 148~220 | 172~265 | 215~300 | 245~380 |
| Number of wheel | 8 | 16 | 16 | 24 | 24 |
| Max. wheel pressure/KN | 288~375 | 210~255 | 255~310 | 230~285 | 295~355 |
| Steel track recommended | QU70 | QU100 | QU100 | QU100 | QU100 |
| Power supply | 3AC 220~480V 50/60Hz | ||||
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
Hot Tags: electric rail mounted gantry crane China, manufacturers, suppliers, customized, quotation, offer, price
