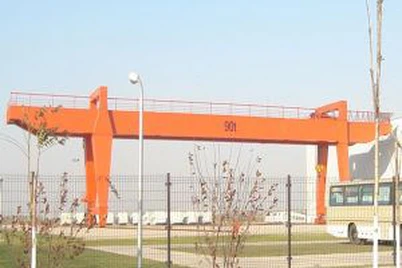

15ton Gantry Crane
MH single girder gantry crane is the most commonly used light duty crane, widely applied for indoor and outdoor workplaces, Such as storage yards, warehouse, workshop, freight yards, and dock.It is a typical A frame gantry crane and the lifting Capacity of this equipment is in a range of 3 ton...
Description
MH single girder gantry crane is the most commonly used light duty crane, widely applied for indoor and outdoor workplaces, Such as storage yards, warehouse, workshop, freight yards, and dock.It is a typical A frame gantry crane and the lifting Capacity of this equipment is in a range of 3 ton to 16 ton to handle small and medium sized materials.The metal Structure of this lightweight gantry crane is usually designed with box type.For outdoor working environments with Strong wind, truss gantry crane is more often used to reduce wind resistance.
This light duty gantry crane is ideal for lifting and transferring small and lightweight loads from one place to another so as To boost productivity and realize a high economic growth, which is widely applied in a large variety of fields, such as Construction site, railway, port, workshop, and shipyard.This type gantry crane comes in various types and each type Is designed for different purposes.According to different girder designs, the light gantry crane can be divided into single Girder and double girder.Besides, we supply fixed and adjustable gantry cranes to serve your specific uses.
It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity;Trussed type has Characteristic of small windward surface, small self weight and strong lifting capacity.
TRUSS TYPE Gantry Crane
Control method:Pendent button control / radio remote control
| Main Parameters List | |||
| Crane Traveling Mechanism | Traveling Speed(m/min) | 20 | |
| Motor | Type | Cone Squirrel-cage | |
| Power(kw) | ZDY21-4/0.8X2 | ||
| Hoist Lifting Mechanism and Traveling Mechanism | Electric Hoist Model | CD1,MD1,HC | |
| Lifting Speed(m/min) | 8 0.8/8 | ||
| Span(m) | 12-30 | ||
| Lifting Capacity(t) | 3-32Ton | ||
| Lifting Height(m) | 6,9 | ||
| Traveling Speed(m/min) | 20 | ||
| Motor | Cone Squirrel-cage | ||
| Work Duty | Intermediate Jc=25% | ||
| Power Supply | 380V 50Hz 3P | ||
| Wheel Diameter | Φ270 Φ400 | ||
| Reducer | ZSC650 ,LD | ||
Customized made gantry crane accepted according to client's actual using conditions.
