MH Model electric Hoist Girder Gantry Crane is used together with CD MD Model Electric hoist. It is a track travelling small and medium sized crane. This product is a regular crane widely used at open ground and warehouse to load, unload or grab materials. It has two controlling methods, namely controlling and room controlling.It's main feature are High site utilization rate;wide scope of operation;wide range of adaptations.;Strong versatility.
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
Widely Used Euro Type Rail Mounted Motor Driven Northern Tool Gantry Crane
The Euro Style Gantry Crane adopt modularization design for lifting mechanism with light weight, alloy-steel forging wheels and intelligent control.
Description
The Euro Style Gantry Crane adopt modularization design for lifting mechanism with light weight, alloy-steel forging wheels and intelligent control.
Features
1. Adopt modularization design for lifting mechanism, FEM/DIN standard, light weight
2. High-strength alloy-steel forging wheels
3. No welded legs for profile steel
4. Capsule cab with broad vision
5. Rectangular steel- pipe handrail
6. Hard tooth surface reducer imported from Germany
7. Power supplied by engineering drag chain
8. World's leading anti-sway control technology
9. Advanced fabricated technology
10. Low-energy and maintenance-free
Products Description

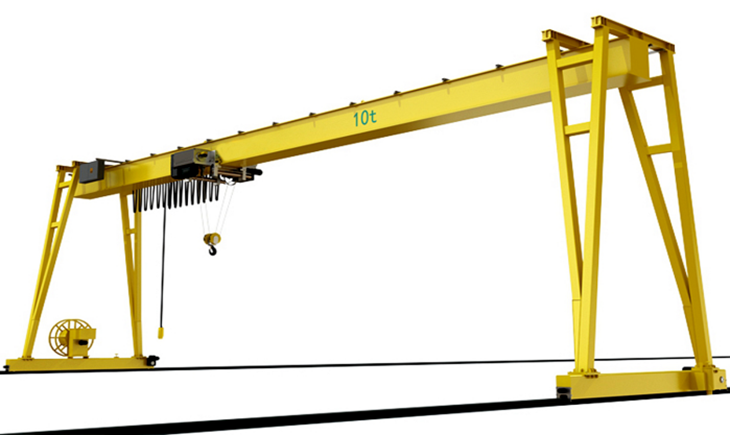

10 ton Single girder
gantry crane
A gantry crane is a lifting device used for cargo handling in outdoor places such as warehouse terminals, stations, and
construction sites. Within the working radius, the gantry crane can lift, descend and move horizontally to carry out cargo
lifting, which greatly reduces physical labor and improves work efficiency. we can customize the gantry crane according to your specific requirements, including lifting weight, overall size design, etc. The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch and so on.
construction sites. Within the working radius, the gantry crane can lift, descend and move horizontally to carry out cargo
lifting, which greatly reduces physical labor and improves work efficiency. we can customize the gantry crane according to your specific requirements, including lifting weight, overall size design, etc. The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch and so on.
Our Advantages
Package and Delivery
Packaging Details： Packed by high quality wooden cases
Port：Shenzhen/Ningbo/Shanghai port
Lead Time : Shipped in 40 days after payment
Port：Shenzhen/Ningbo/Shanghai port
Lead Time : Shipped in 40 days after payment
Sales Market
DOWELL CRANE professionally develops crane product for over 30 years, integrating sales and system services, making it safer, more energy efficient and more precise. Our products sell well all over the country, and have been cooperated with State Grid and Sinohydro Group Ltd. We also exported to southeast Asia and other overseas markets , such as Gemstar technology and Lear Corporation, both receiving high prais
information and integrate foreign advanced technology and design ideas.
| No. | Item | Specification | ||||
| 1 | Safe working Load | 12T | ||||
| 2 | Span(gauge) | 13M | ||||
| 3 | Cantilever | 5M+5M | ||||
| 4 | Lifting Height | 5.5M | ||||
| 5 | Crane traveling Length | 120M | ||||
| 6 | Working Class | ISO A5 / FEM 2m | ||||
| 7 | Static Testing of Main Girder | 1.25 | ||||
| 8 | Dynamic Testing of Main Girder | 1.1 | ||||
| 9 | Total weight | 14200Kg | ||||
| II-Hoisting Trolley Assembly | ||||||
| 9 | Capacity | 12T | ||||
| 10 | Working System | ISO M5 | ||||
| 11 | Main Lifting | Motor Model | NWH | |||
| Speed | 0.66/4.0M/Min | |||||
| Power | 1.5/9.5Kw | |||||
| 12 | Trolley traveling | Power | 0.95Kw | |||
| Speed | 5-20M/Min (VVVF) | |||||
| 13 | Protection class | IP54 | ||||
| III-Crane Traveling Mechanism | ||||||
| 14 | Span | 24m | ||||
| 15 | Travel speed | 3.0-30m/min (VVVF) | ||||
| 16 | Working System | ISO M5 / FEM 2m | ||||
| 17 | Motor power | 2.2x2Kw | ||||
| 18 | Track Rail Type | P38 | ||||
| IV-Other Description | ||||||
| 19 | Power Supply | 400V/50HZ/3P | ||||
| 20 | Crane total power | 16.35Kw | ||||
| 21 | Power Supply Model | Bus bar | ||||
| 22 | Operation Type | Pendant line+Wireless remote | ||||
| 23 | Protection class | IP54 | ||||
| 24 | Insulation Grade | F | ||||
| 25 | Working State Environment Temperature | -20-45℃ | ||||
| 26 | Colour | According to customers' demands | ||||
