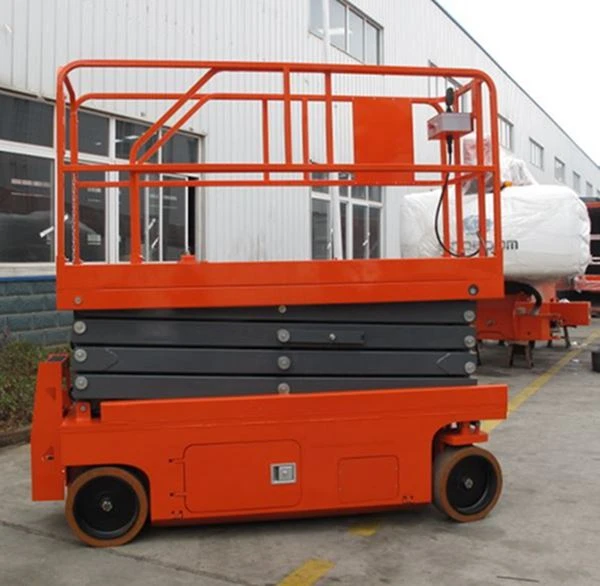

Electric Hydraulic Lift Table

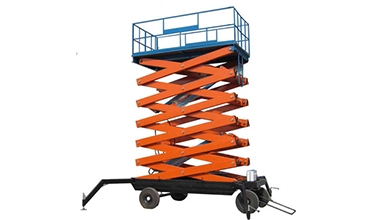

Four-wheel mobile lift is a wide range of high-altitude professional equipment. Its scissor-type mechanical structure makes the lifting platform have higher stability after lifting, wide working platform and high carrying capacity, which makes the working range of aerial work larger and suitable...
Description
Product Application

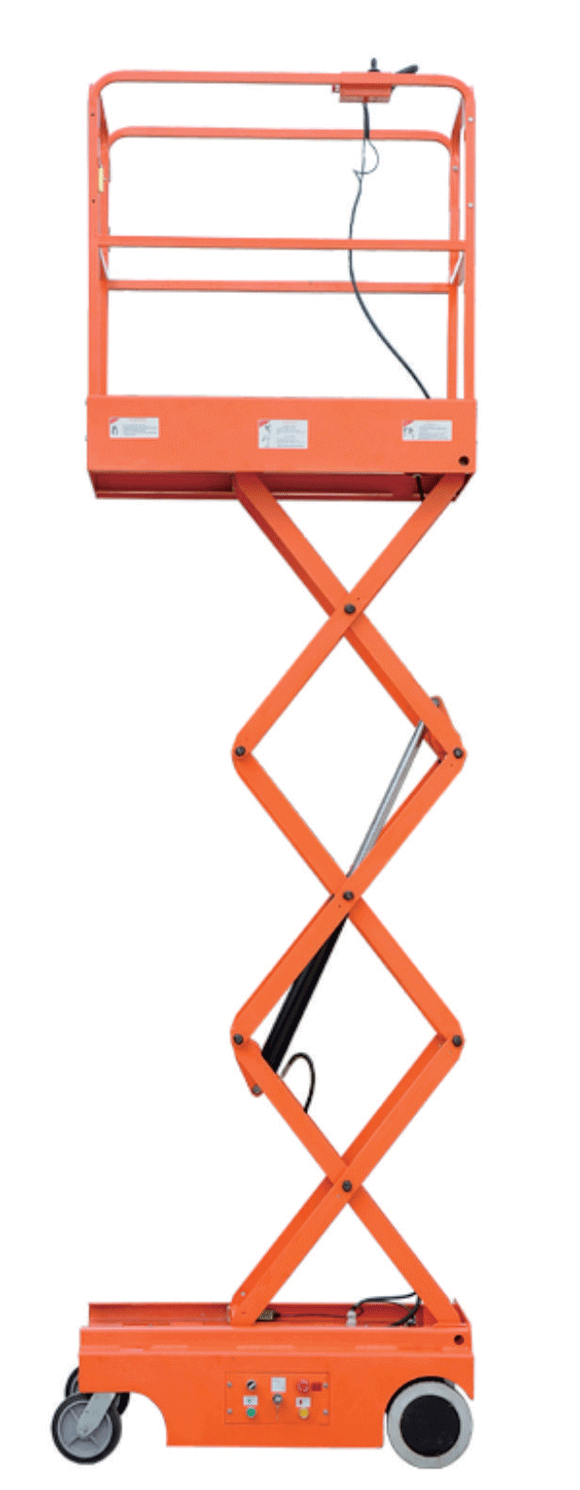

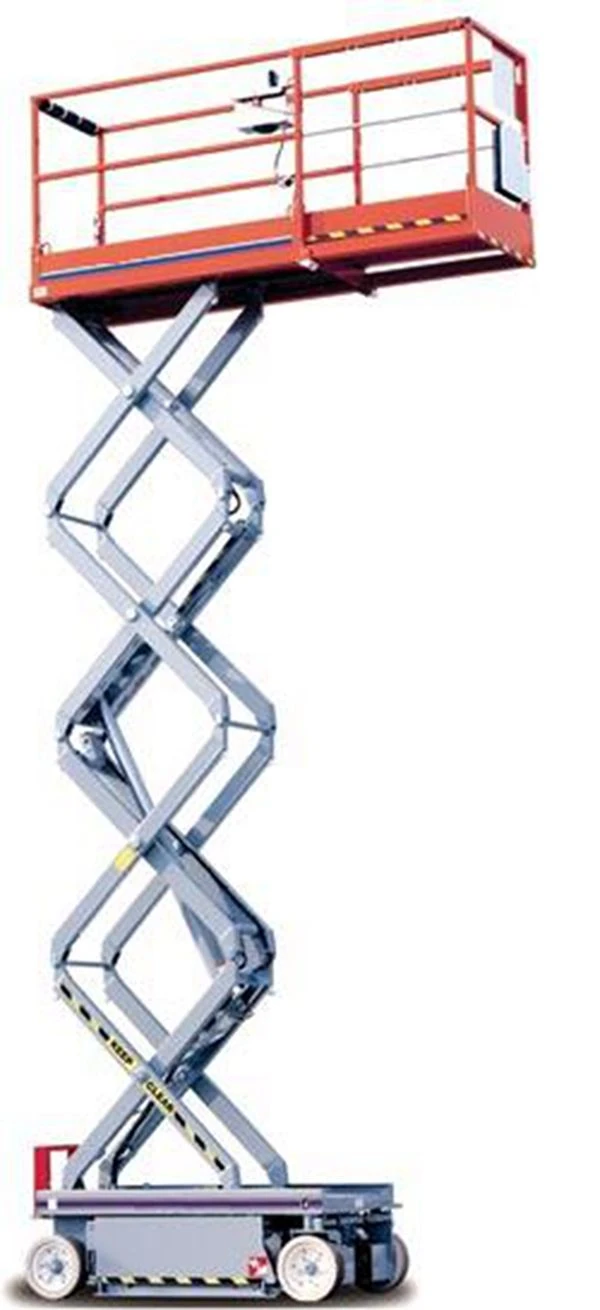

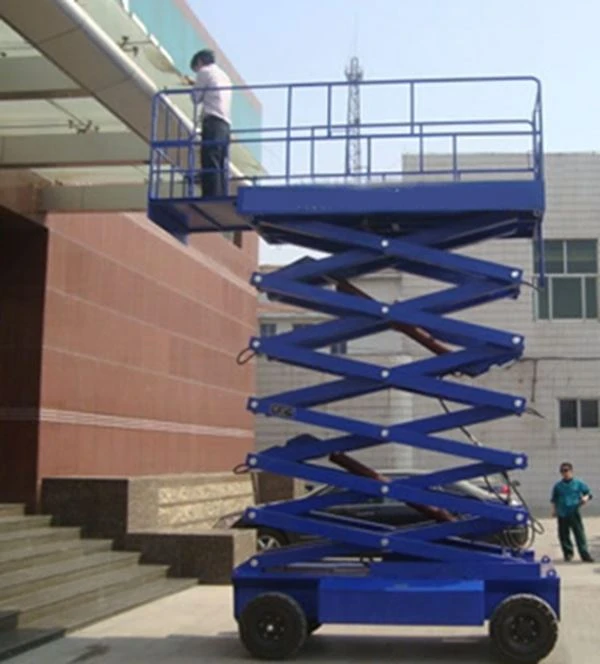

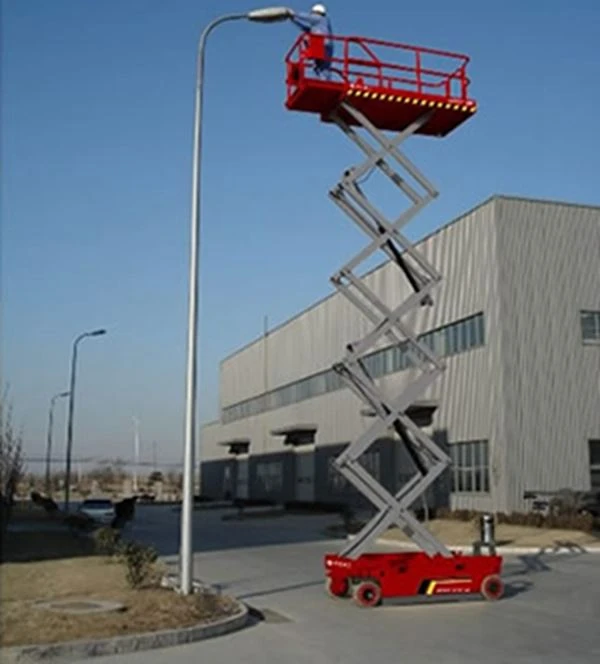

self propelled electric mini scissor lift/hydraulic scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Scissor Aerial Work Platform Features: lifting mechanism of high-strength
Manganese steel rectangular tube production. With a safety device to prevent
Overloading of the lift. Provided to prevent hydraulic line rupture safety
Protection valve. Emergency lowering device in case of a power outage.
| Model | Capacity(kgs) | Max height (mm) | Min height (mm) | Platform size (mm) | Motor power (kw) | Weight(kgs) |
| SJY0.5-3 | 500 | 3000 | 850 | 1300*700 | 0.75 | 400 |
| SJY0.5-5 | 500 | 5000 | 950 | 1300*700 | 0.75 | 620 |
| SJY0.3-6 | 300 | 6000 | 950 | 1850*880 | 0.75 | 650 |
| SJY0.5-6 | 500 | 6000 | 950 | 1850*880 | 1.1 | 650 |
| SJY0.3-7 | 300 | 7500 | 1250 | 1850*1000 | 1.5 | 900 |
| SJY0.5-7 | 500 | 7500 | 1350 | 1800*1000 | 1.5 | 1100 |
| SJY0.3-9 | 300 | 9000 | 1500 | 1850*1000 | 1.18 | 1200 |
| SJY0.5-9 | 500 | 9000 | 1600 | 1850*1000 | 1.5 | 1260 |
| SJY0.3-11 | 300 | 11000 | 1600 | 1800*1000 | 2.2 | 1320 |
| SJY0.5-11 | 500 | 11000 | 1600 | 2100*1150 | 2.2 | 1380 |
| SJY0.3-12 | 300 | 12000 | 1600 | 2100*1150 | 2.2 | 1700 |
| SJY0.5-12 | 500 | 12000 | 1800 | 2450*1350 | 3 | 1850 |
| SJY0.3-14 | 300 | 14000 | 1800 | 2450*1350 | 3 | 2200 |
| SJY0.5-14 | 500 | 14000 | 1980 | 2450*1350 | 3 | 2500 |
| SJY0.3-16 | 300 | 16000 | 1980 | 2500*1500 | 3 | 2600 |

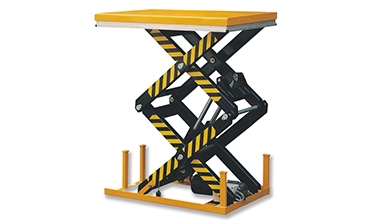

 | Fixed lifting platformload capacity :300-1500kg lifting height :1.2-5.5m Outline drawing :1500*1500*480-2600*2600*530mm Pump station :2.2-7.5kw |
Aluminum alloy lifting platformload capacity :200-250kg Power :2.2kw platform :0.6*0.6mm |  |
 | Traction lifting platformload capacity :500-2000kg |

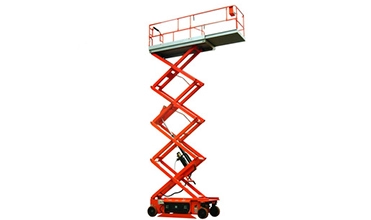

Self-propelled lifting platformRated load :300kg |  |

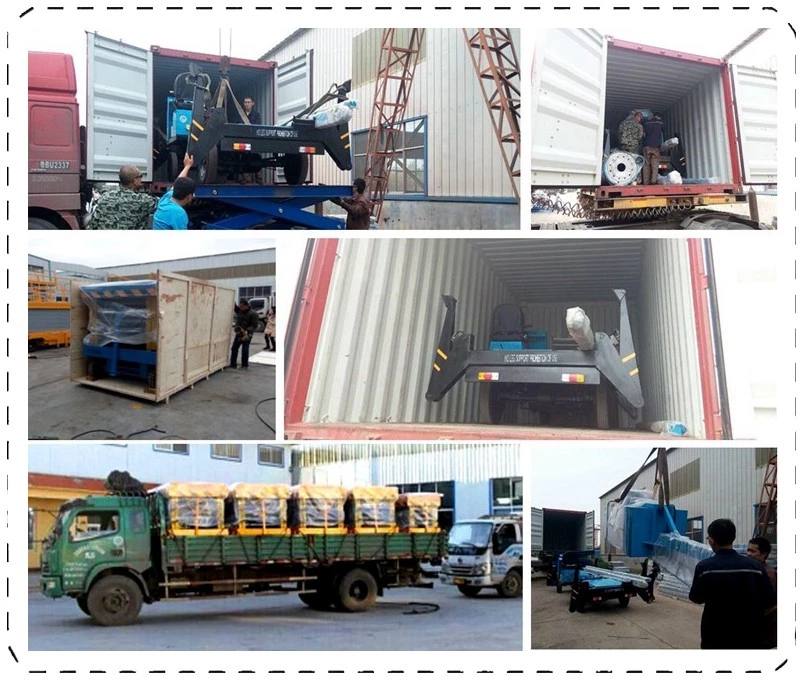

Packing & Delivery terms:
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
