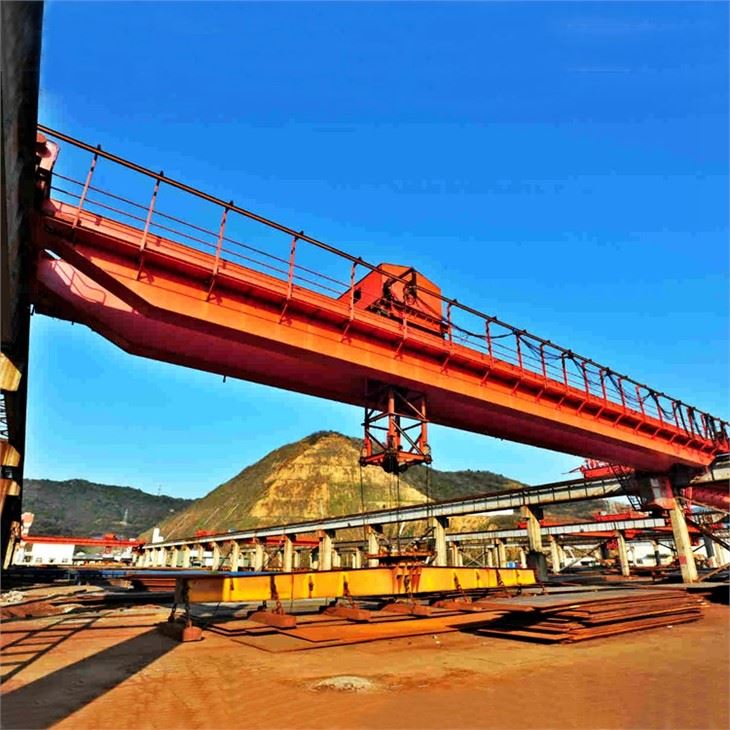

Lifting Magnet Overhead Crane

Product Model；QD Lifting capacity: 5-450t
Span:6m - 31.5 m
Lift height: 3m - 60m
Working Duty: A3-A6
Customized service:Provide
Working Temperature: -25 to 40°C

Send Inquiry

Description

Lifting magnet overhead crane

This crane is a special product equipped with electromagnetic chuck that used to lift iron or steel blocks, cylinders and so on. It consists of bridge, crane travelling mechanism, trolley, electric equipment and electromagnetic chuck. Both traveling mechanism and trolley motors are special motors for canes, large starting torque and loading capacity. Magnetic retentive is 10 minutes after power shut. The shape of electromagnet can be designed according to adsorptive goods.

555

Applications:

1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.
2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.
3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.
4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.

5. Widely used in steel mill to convey steel scrap or steel bar.

666

Faq

1. How long will us provide the quotations?
Within 24 hours since we got the detial requirement.
2. How long will the production take?
Within 20~30 working days after the specification confirmed
3. How long will the inland transport takes?
We will send the detail pictures or video to our customer. After confirmed and pay the spare money the inland transport will begin and will take 2~4 days.
4. How long will the sea transportation take?
This is depend on where is the destination. The time you can take as a reference:
To South Korea, Japan, Taiwan, Hongkong: 2~3 days
To Southeast Asia: 7~10 days
To South Asia:13~18 days.	{Karachi, 15, Colombo, 13, Chittagong, 18}
To Austrilia: 15~20 days.	{Sydney,15}
To the Middle East: 15~20 days.	{Dubai, 15, Damman, 20, Doha, 20~25, Sohar, 20~25}
To Mediterranean: 25~30 days.	{Istanbul, 25, Constanza, 28, Genova, 27}
To North Africa: 20~40 days.	{Port Said, 20, Algiers, 30~40, Tangier, 30}
*Other or details please contact our sales manager to check the accurate.

Technical parameters

Load Capacity,t	5t+5t(including the lifting tools)
Span,m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	34.5
Lift height,m	16/18
Duty class	A7
Lift speed, m/min	18
Cross travel speed, m/min	38
Long travel speed, m/min	80
Power, kw	63	63	63	63	63	63	63	63	63
Max. wheel load, KN	66	71	76	82	88	93	99	106	112
Rail recommended	43kg/m
Power Voltage	380V, 50Hz, 3-phase, AC

Load Capacity,t	10t+10t(including the lifting tools)
Span,m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	34.5
Lift height,m	16/18
Duty class	A7
Lift speed, m/min	15
Cross travel speed, m/min	38
Long travel speed, m/min	80
Power, kw	101.4
Max. wheel load, KN	98	103	108	114	120	128	132	155	178
Rail recommended	43kg/m
Power Voltage	380V, 50Hz, 3-phase, AC

Load Capacity,t	16t+16t(including the lifting tools)
Span,m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	34.5
Lift height,m	16/18
Duty class	A7
Lift speed, m/min	13
Cross travel speed, m/min	38
Long travel speed, m/min	80
Power, kw	118	118	118	126	126	126	126	126	126
Max. wheel load, KN	146	151	156	163	168	175	181	188	196
Rail recommended	43kg/m
Power Voltage	380V, 50Hz, 3-phase, AC

Load Capacity,t	20t+20t(including the lifting tools)
Span,m	13.5	16.5	19.5	22.5	25.5	28.5	31.5	34.5
Lift height,m	16/18
Duty class	A7
Lift speed, m/min	13
Cross travel speed, m/min	38
Long travel speed, m/min	80
Power, kw	148	148	148	155
Max. wheel load, KN	213	221	230	238	246	255	263	272
Rail recommended	43kg/m
Power Voltage	380V, 50Hz, 3-phase, AC
