Overhead Crane China
Double girder overhead crane mainly consists of bridge, trolley travelling mechanism, crab and electrical appliances, and is divided into 2 working grades of A5 and A6 according to the use frequency. Double girder overhead crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Description
Products Description

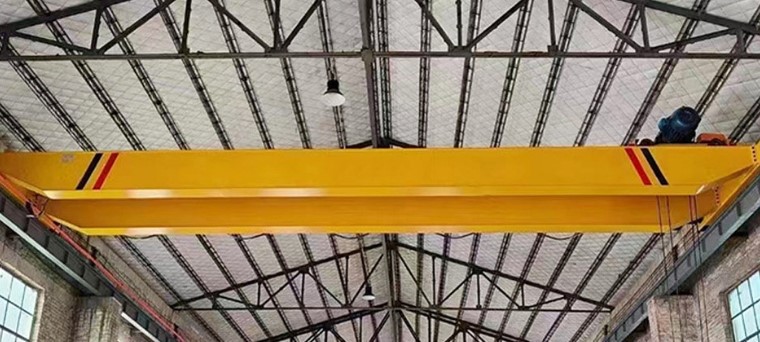

LH electric hoist bridge crane (referred to as hoist) uses a fixed wire rope hoist as the lifting mechanism, installed on a centrally driven double-track trolley, and used in conjunction with a double-beam bridge. It is mainly used in machinery manufacturing workshops, warehouses, material yards, hydropower station maintenance, assembly and other places. This series of products has two modes: cab operation and ground operation.
The electric hoist bridge crane consists of four parts: a box-shaped bridge, a trolley running mechanism, a trolley, and electrical equipment. A fixed electric hoist is installed on the trolley frame as a lifting mechanism. The trolley operation adopts LD type transmission, and the trolley operation is divided into LD type transmission and QD type transmission. The structure is simple and light, with compact dimensions, low building clearance, light weight, and small wheel pressure. It is suitable for operation, assembly, maintenance and loading and unloading operations in mechanical processing workshops, auxiliary workshops of metallurgical plants, warehouses, material yards, power stations, etc.; it can also replace ordinary double-beam bridge cranes and be used in production workshops of light textile industry and food industry.
comparison of product parameters
| Lifting capacity | 3-20T |
| Span | 10.5-31.5m |
| Lifting speed | 3.5/0.35-8/0.8m/min |
| Operating speed | 20m/min |
| Working level | A3-A5 |
| Recommended rail | #24/#38 |
product advantage
High site utilization, wide operating range, wide application, saving time and effort, low noise
Light weight, small wheel pressure, simple structure, easy operation, stable operation performance
Strict material selection, the fuselage is stable, the lifting weight is large, the walking is stable, and the service life is longer
Various specifcations and models can be customized according to customer needs
Using thickened steel, welding process, stable structure, smooth grinding, beautiful and generous
Manufacturing process
Steel plate: The steel plate is pre-treated by shot blasting, and the surface quality reaches Sa2.5 level;
Web plate: The web plate is cut by CNC cutting to ensure the smoothness and accuracy of the camber curve;
Weld seam: The main weld seam adopts submerged arc automatic welding and ultrasonic welding
Bridge frame and trolley frame: The bridge frame and trolley frame are processed as a whole by floor-standing boring machine to ensure the flatness of the processed surface.
