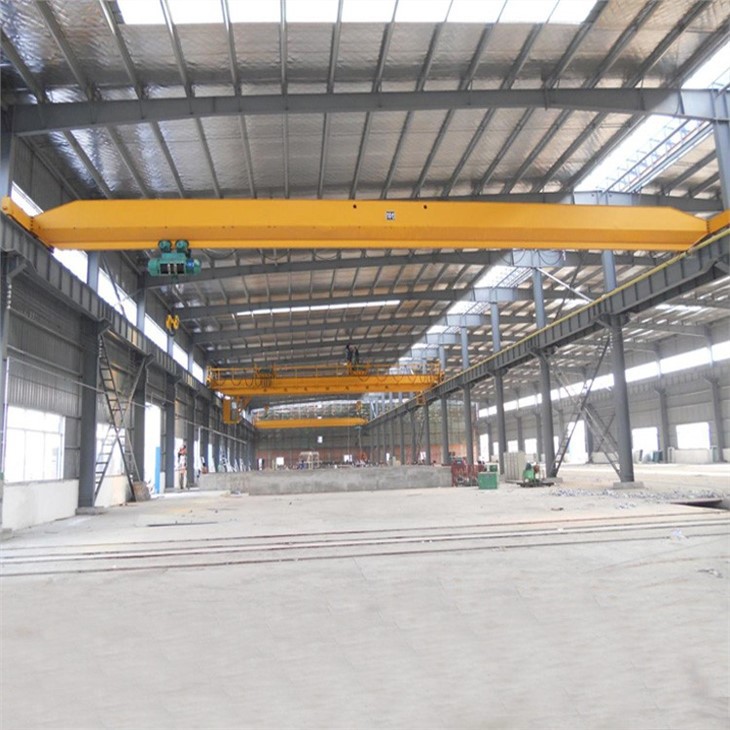

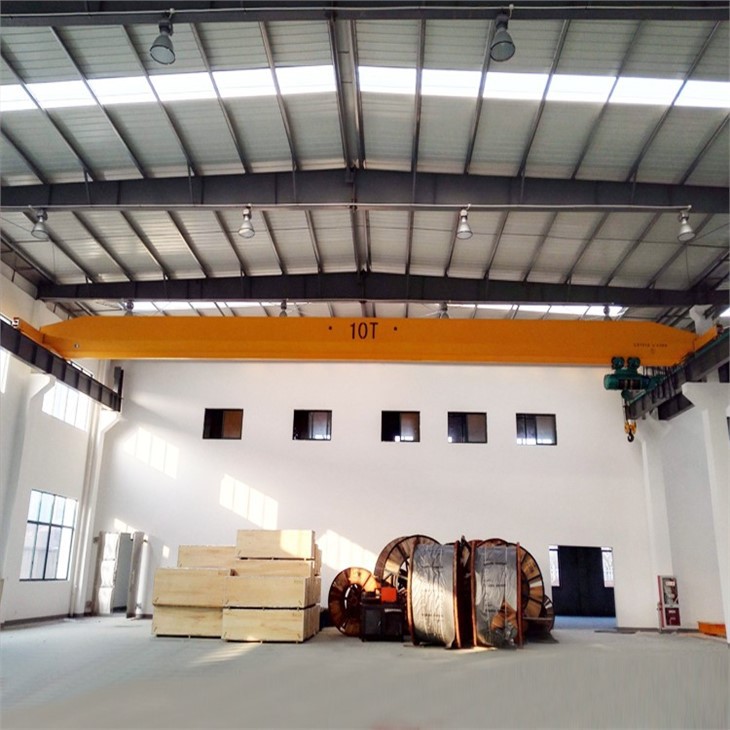

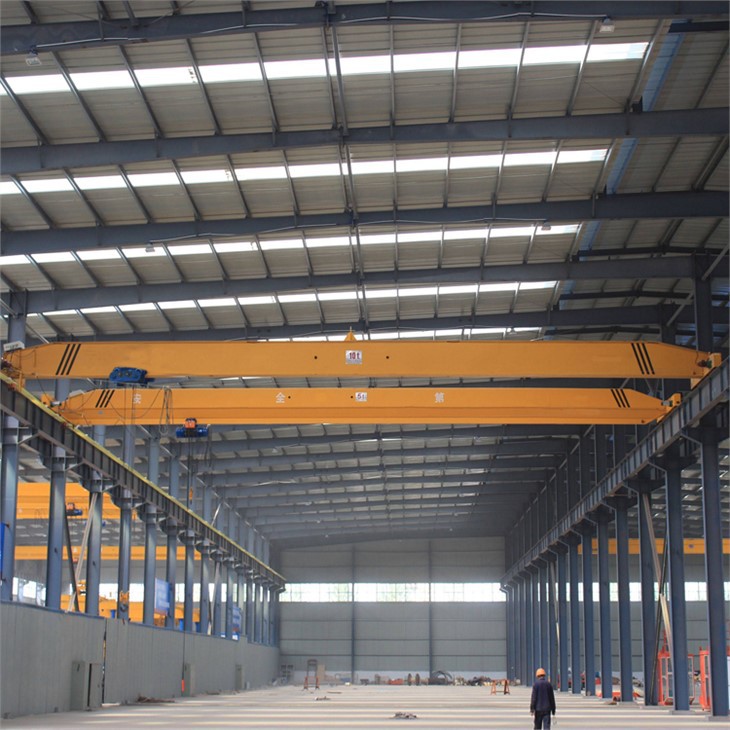

Electric Overhead Crane
Product Model: LD
Lifting capacity: 1-30t
Span:6m - 31.5 m
Lift height: 3m - 60m
Working Duty: A3-A6
Customized service:Provide
Working Temperature: -25 to 40°C
Description
Electric Overhead Crane Description

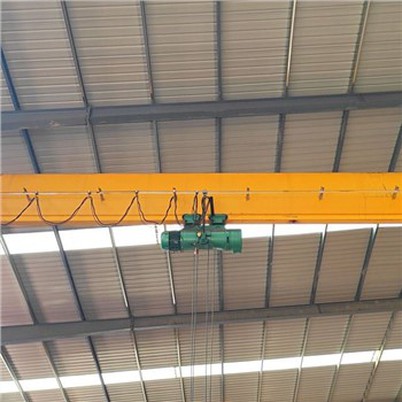

Single girder bridge crane consists of four components: single girder, end carriage, electric hoist and electric control equipment. The Girder adopts the welding structure of U-shaped groove and structure with the I-steel. This transmission system has strong overloading power, suited to frequent starter with simple structure, convenient installation, use and maintenance, low cost, suitable for general lifting of the goods.
Electric Overhead Crane Drawing
Electric Overhead Crane Parameters
|
Capacity(t) |
1t---5t |
10t |
16t---25t |
32t---50t |
75t---100t |
|
Span(m) |
6.5m---35.5m |
||||
|
Lifting height(m) |
3m---30m |
||||
|
Control mode |
Pendant control,wireless remote control,cabin control |
||||
|
Lifting speed(m/min) |
2.8 ,8, 8/0.8 |
2.3 ,7 ,7/0.7 |
3.5 , 3.5/0.35 |
3 ,3/0.3 |
1.8 ,1.8/0.2 |
|
Travelling speed(m/min) |
20,30,45(Inverter) |
||||
|
Service class(work grade) |
a) M2,M3: used in places of mild service, such as workshop and warehouse. c) M5: used in heavy place and long time working factory |
||||
|
Supply power(three phase power) |
380V 50HZ 3Phase (according to user require) |
||||
|
Hoist type |
Wire rope or chain hoist ,single or double speed |
||||
|
Working ambient temperature |
-20 °C~ <55°C. |
||||
|
Note |
It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions. |
||||
Electric Overhead Crane Features
1.Higher working efficiency
2.Easy installation and operation
3.Good design, Strong rigidity
4.Smoothly moving, Effectively braking
Package and Delivery
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.
FAQ
A: What is the best crane for my need?
B: We can customize all kinds of crane according to your requirements, so don’t worry about your needs, just tell us your demands, and we can design and manufature your own crane based on your needs.
A: Which industries do you serice?
B: We service many industries inluding machinery, metallurgy, electric power, railway, water conservancy, port, aviation, military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete, steel warehouse, marble and stone and other fields.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer thres different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A: Which cranes are most suitable for outdoors?
B: The gantry crane range is often most suitable for outfoor type work. There are types- the single girder gantry crane and double girder gantry crane.
A: What internation cerfiticate does your crane passed?
B: Our crane has passed CE, ISO, GOST, SGS, TUV, BV, and so on.
