6 Ton Bridge Crane
Product Model: LD
Lifting capacity: 1-30t
Span:6m - 31.5 m
Lift height: 3m - 60m
Working Duty: A3-A6
Customized service:Provide
Working Temperature: -25 to 40°C
Description
6 Ton Bridge Crane Description

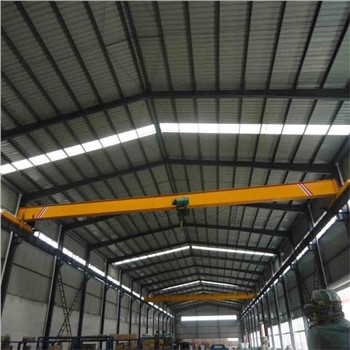

LD Single girder bridge crane is widely used in machinery manufacturing shop, petroleum, petrochemical, metallurgical workshop, ports, paper making, building materials, electronics and other industries workshops, warehouses, yard, etc. With compact dimension, low headroom, light weight, small wheel pressure, etc.
6 Ton Bridge Crane Drawing
6 Ton Bridge Crane Parameters
|
Item |
Technical Specifications Overhead Crane |
||
|
Lifting capacity |
t |
0.5-20 |
|
|
Lifting height |
m |
<30 |
|
|
Span |
m |
>6 |
|
|
Speed |
Cross traveling speed |
m/min |
20 |
|
Crane traveling speed |
20 |
||
|
Lifting speed |
7 |
||
|
Working class |
/ |
A3,A4,A5,A6 |
|
|
Power supply |
V/Hz/Phase |
220v/380v/400v/415v/440v/50hz/60hz/3p |
|
|
Cross traveling power |
KW |
0.8kw*2 |
|
|
Crane traveling power |
0.8kw*2 |
||
|
Hoisting power |
13 |
||
|
Total power |
16.2 |
||
|
Max wheel load |
KN |
57 |
|
|
Min wheel load |
8 |
||
|
Total wheels |
/ |
4 |
|
|
Protection class |
/ |
IP55 |
|
|
Insulation class |
/ |
F |
|
|
Working temperature |
/ |
-20℃~+40℃ |
|
|
Traveling rail |
P24 |
120M as customized |
|
|
Remark |
Above Parameter just reference ,we do all items as your requirement. |
||
6 Ton Bridge Crane Safety Devices Features
● Crane traveling limit switch.
● Weight overload protection device.
● Lifting height limit device.
● Voltage lower protection function.
● Phase sequence protection function.
● Emergency stop function.
● Rain cover for outside hoist, driving units, electric cubicle.
● Warning indicator: flashing lights and warning sounds.
● Wireless infra-detector for anti-collusion.
Package and Delivery
■ Standard container packing
■ According to customer"s requirements
■ Delivery Time shipped in 25 days after payment
FAQ
A: What is the best crane for my need?
B: We can customize all kinds of crane according to your requirements, so don’t worry about your needs, just tell us your demands, and we can design and manufature your own crane based on your needs.
A: Which industries do you serice?
B: We service many industries inluding machinery, metallurgy, electric power, railway, water conservancy, port, aviation, military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete, steel warehouse, marble and stone and other fields.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer thres different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A: Which cranes are most suitable for outdoors?
B: The gantry crane range is often most suitable for outfoor type work. There are types- the single girder gantry crane and double girder gantry crane.
A: What internation cerfiticate does your crane passed?
B: Our crane has passed CE, ISO, GOST, SGS, TUV, BV, and so on.
