M5 Workshop Electric Hoist Overhead Crane
load: 1-32t
span: 7.5~31.5m
Lifting speed：3.5m/min or double speed
Crane traveling speed：20/30 m/min or 0-30m/min
Description
Basic Description of m5 workshop electric hoist overhead crane
Single girder overhead crane is a kind of light and small overhead lifting crane.
1. Widely use for lifting and transferring goods in factories, warehouses, maintenance workshop, material yard and so on.
2. Prohibited to use the equipment in the combustible, explosive or corrosives environment.
3. It is characterized by more reasonable structure and higher strength steel as a whole. Used together with CD1 model, MD1 model, HC model electric hoist as a complete set.
4. Two operational methods: ground or operational room. (open model and closed model, can be installed on left or right side according to the practical situation )
Schematic drawing of m5 workshop electric hoist overhead crane
Technical Data Sheet of m5 workshop electric hoist overhead crane
Lifting Capacity | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
CD1 hoist | 8 (7) | 3.5 | ||||||||
Traveling of electric hoist | 20 | 20 | ||||||||
Traveling of crane | 20/30 | 20/30 | ||||||||
Wheel diameter | Φ270 | Φ370 | ||||||||
Width of trail | 37~70mm | 37~70mm | ||||||||
Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
Working Duty | A3 | |||||||||
Power Supply | 380v 50hz or on your request | 380v 50hz or on your request
| ||||||||
Features of m5 workshop electric hoist overhead crane
Single girder bridge crane can effectively save plant space and investment. The cost and unique structure of the walking are your best choice.
1.Higher working efficiency
2.Easy installation and operation
3.Good design, Strong rigidity
4.Smoothly moving, Effectively braking
5.low energy consumption, strong rigidity, light weight
Our Service
1. Three years warranty
2. Free distribution of wearing parts
3. Provide assemble videos before shipment
4. Technical support and field installation
Inquiry notice ! ! !
If you want to inquire about our overhead crane , please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity (3t 5t 10t or others) ?
2. Span (3m 5m 9m or others) ?
3. Lift height (Warehouse width) ?
4. Power supply in your local (380V/50HZ/3Phase or others) ?
5. Nearest port ?
6. What kind of goods will this crane lift ?

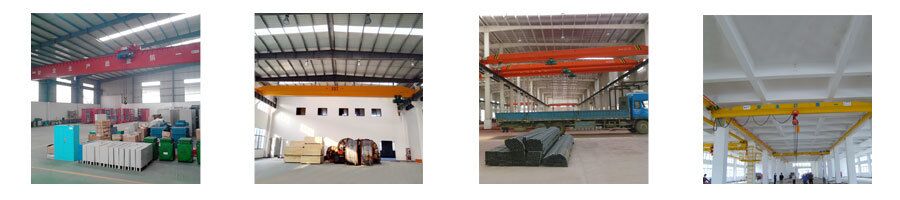

Details of m5 workshop electric hoist overhead crane
