Container Handling Crane
video

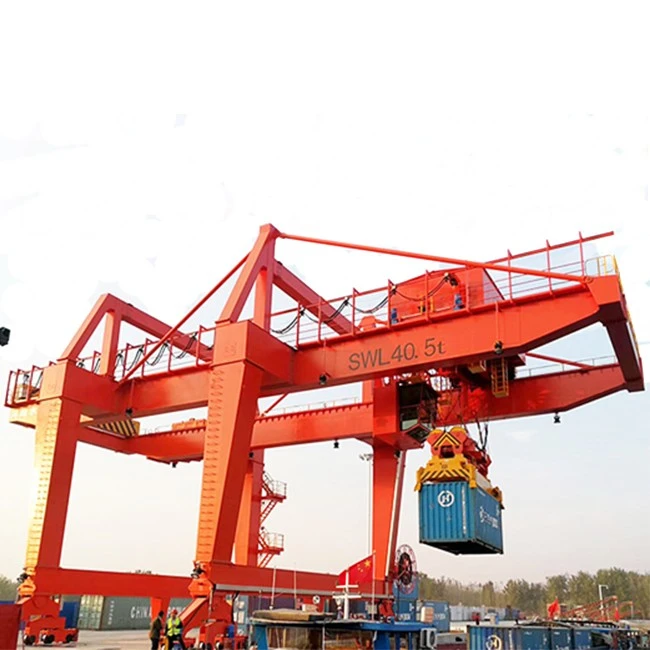

Container Handling Crane

Container Handling Crane

Place of Origin: Henan
Lifting height: 2m-20m
Hoist type: Electric or Manual
Material: Steel
Traveling type: Electric
Color: Customized
Warranty: 5 Years
Customization: accept

Description

container handling crane working characteristics



Shore-to-shore container cranes, rail mounted gantry container cranes, and rubber type gantry container cranes are special machines for container terminal yard operations. It has the advantages of flexible maneuvering, stable operation, correct alignment, fast efficiency, high stacking, and small footprint. It is suitable for loading and unloading operations of heavy cargo in seaports and river ports. After being equipped with a container spreader, the container can be hoisted. This machine adopts AC frequency conversion speed regulation, PLC control, and installs an intelligent "status monitoring and control system".

rail mounted gantry crane1



container handling crane Model Parameters



Caoacutt of Spreader

T 30.5 35 40.5 50

Working Duty

A6 A6 A6 A6

Span (m)

S 35 35 35 35

Base (m)

B 16 16 16 16

Lifting Height (m)

H 15.4 15.4 18.2 18.2
Speed Hoisting With Full load

m/min

12 12 18 18
Only winty Spreader 24 24 36 36
Travese 60 60 70 70
Traveling 45 45 45 45

Total Power

kw

~200

~230

~255

~300

Max. working Load of Wheel

kn

260 260 280 300

Crane Rail

  P50 P50 P50 QU80

Power Source

Three-phase AC 50Hz 380V







container handling crane Model Drawing



The container handling crane It is mainly composed of steel structure, hoisting mechanism, micro-rotating mechanism, spreader anti-sway device, cart running and steering mechanism, trolley running mechanism, container spreader, diesel generator electrical equipment and other necessary safety and auxiliary equipment. PLC control system and CMMS fault monitoring system can be used, with automatic fault monitoring and diagnosis functions, sufficient communication and lighting, safe and reliable work

rail mounted gantry crane



product-750-350
