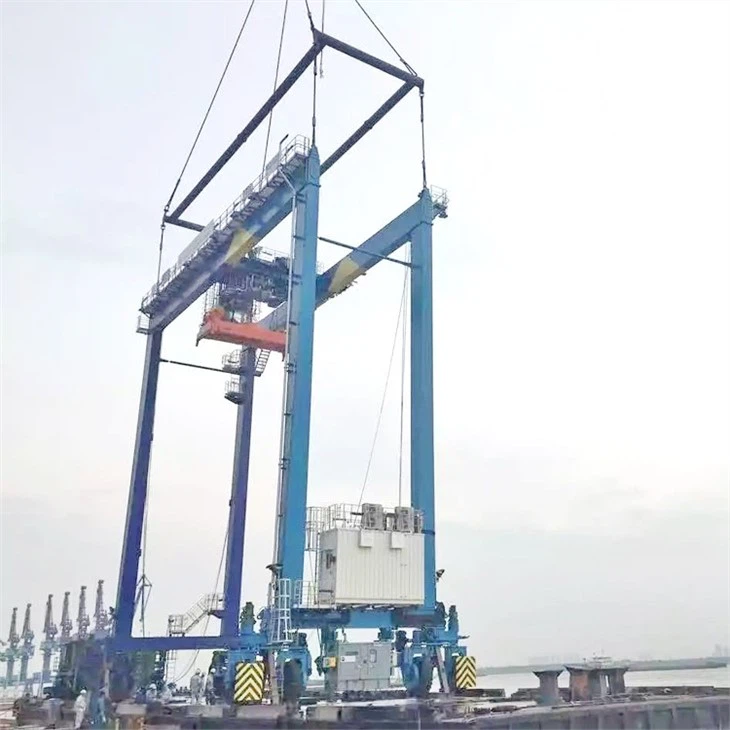

RTG Rubber Tyred Gantry Cranes
Product Name: Container Crane
Feature: Gantry Crane
Max. Lifting Height: 13m
Span: 18-35m
Duty class: A6-A8
Industrial Voltage: According to your request
Place of Origin: Henan, China
Warranty: 3 Years
Condition: New
Description
RTG Rubber Tyred Gantry Cranes Model Description
Rubber tyre container gantry crane applies to international standard container transporting, loading and unloading at the container yard and railway container depots, with stable performance, high efficiency and ease maintenance having proper safety instructions and overload protection devices to maximizely ensure the safety of operational personnel and equipment. Electrical system uses PLC frequency adjustment which can easily control every mechanism.
RTG Rubber Tyred Gantry Cranes Parameters
|
Model |
LJ35/40-23 |
LightType LJ40-23 |
|
Capacity(under spreader) (t) |
35,40 |
40 |
|
Work Duty |
A7,A8 |
A6,A7 |
|
Span (m) |
23.47 |
23.47 |
|
Lifting Height (m) |
12.2~17.8 |
16.5 |
|
Stack Layers/Passing Layers |
3/4~5/6 |
5/6 |
|
Container Model |
20',40',45' |
20',40',45' |
|
Spreader Rotating Angle |
±5° |
±5° |
|
Hoisting Speed (m/min) |
13/26,23/52 |
12/18,18/28 |
|
Cross Travel Speed (m/min) |
50,70 |
24 |
|
Long Travel Speed (m/min) |
Full Load-90,Without Load-130 |
Full Load-20,Without Load-40 |
|
Max.Wheel Load (kN) |
310 |
310 |
|
Total Rating (kW) |
150,230 |
110,150 |
|
Power Supply |
Electric,Diesel engine,Electric-Diesel drive |
|
RTG Rubber Tyred Gantry Cranes Features
1. Suitable for both port and rail terminals
2. Suitable for various yard space conditions
3. Increased yard capacity with wider and higher stack possibilities
4. Reduction in emissions and noise
5. Minimal maintenance
6. Electric supply for energy efficiency and reduced running costs
RTG Rubber Tyred Gantry Cranes Drawing
RTG Rubber Tyred Gantry Cranes Safety Devices
1. Automatic rectify deviation control
2. Weight overload protection device
3. Top quality polyurethane buffer
4. Phase protection
5. Lifting limit switch,cross traveling limit switch,long traveling limit switch
6. Voltage lower protection function
7. Emergency stop system
8. Current overload protection system
9. Lighting system
Packing and Delivery
◆ The main girder and end truck are packed in woven bags to reduce wear during transportation.
◆ The container is fixed with steel wire rope to prevent damage to the equipment during transportation.
◆ The electronic control components are packed in high-quality plywood crates to prevent moisture, sun and rust.
Attention
- What's the information should I provide when inquiry?
1. More details or drawings, better.
2. Lift capacity
3. Span
4. Lift height
5. Power source or other specials you give us will be more appreciated .
