Rail Mounted Gantry Crane (RMG) for Piling container
Rmg, Rail Mounted Gantry Crane, Crane manufacturer / supplier in China, offering Rail Mounted Gantry Crane (RMG) for Piling 20′&40′container, 1-50 Ton Wire Rope Electric Hoist, Rotating 360 Jib Crane Degree for Workshop and so on.
Description
Welcome to consult rail mounted gantry crane (rmg) for piling container price and quotation with Henan Dowell Crane Co.,Ltd, which is one of the leading rail mounted gantry crane (rmg) for piling container manufacturers and suppliers in China, and we can offer you customized products.
Basic Info
Condition: New
Maximum Lifting Height: >40m
Type: Construction
Girder Structure: Rigid Box Type
Custom Design: Available
Working Ambient: -25-40
Limit Switch: Available
Lifting Height: as Demand
Transport Package: Standard Packing
Origin: China
Certification: CE, ISO9001
Operation Form: Pendant+Cabin+Wireless Remote Controller
Maximum Lifting Weight: >200t
Capacity: 35.5-45t(Under Hook)
Painting Color: as Demand
Working Duty: A3-A6
Application: Port
Product Name: Gantry Crane
Specification: RMG Portal Crane
HS Code: 84261930
| Crane Type | JM-35 | ||
| Capacity(Under Hook) | t | 35 | |
| Span | m | 30 | |
| Lifting Height | m | 16 | |
| Working System | A6 | ||
| Container | 20'40' | ||
| Speed | Hoist(Full/unload) | m/min | 0-10 |
| trolley | 3.4-34 | ||
| Crane | 2.9-29 | ||
| Weight | trolley | t | 52 |
| Crane | t | 253 | |
| Max. wheel load | kn | 295 | |
| Power Supply | 380V, 50Hz | ||

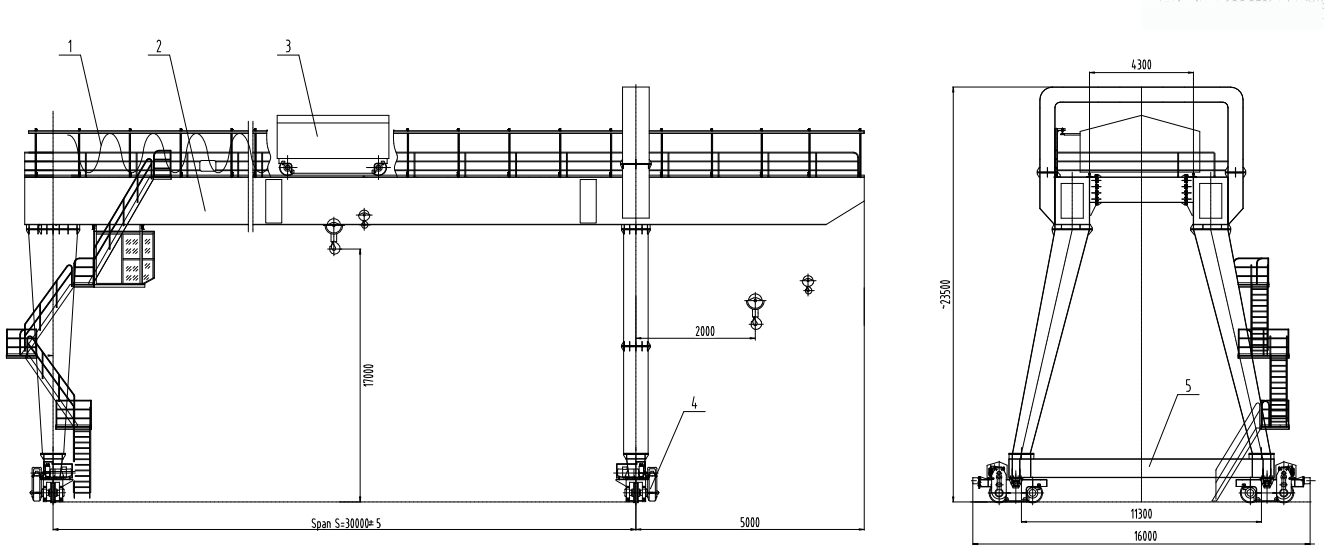

Schematic drawing
Product Description
Rail Mounted Container Port Crane
RMG Crane is special equipments for piling containers with a large span, then to make full use of the yard area, strengthen the piling capabiltiy of the yard and achieve automation. They can be used to file containers in the docks, at inlad transits and at railway container yards. The theoretical efficiency of them can be designed according to the customers' demands.
Mechanical
-Double main girder, welded box beam
-Material: carbon steel with high quality of Q235B or Q345B
-The main girder is connected by strength bolt.
-Weld joint tested by X ray or ultrasonic examination;
-Forged Crane wheels
-Trolley with Compact structure, small size and light;
-Lifting mechanism is rigid open winch trolley
-Compacted gear motor driving, harden gear, hydraulic brake
-Excellent driving properties, smoothly moving
-Shot-blasting Sa2.5 for complete girder after welding, stress release
-Epoxy zinc rich high quality painting, 2x2 with 140μm
Electrical
-Conductor power supply
-All hoist and crane movements are independent and can be run simultaneously.
-Protection degree IP55
-The components are positioned in a maintenance friendly way, and the whole layout provides with good protection
-Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track.
Protective Features
- Overload Limiter, Limit Switch (Lifting and Traveling), Interlock protection device, Buffer, Rail clear plate, Protective cover, Bus Bar preventer plate, Anti-collision device, Light alarm devices Main isolating switch, Emergency stop system, Motor overload protection
-equipped with rainproof devices for lifting mechanism, electrical control box.
Inquiry notice ! ! !
If you want to inquire about our gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1.Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
Gantry crane part detais
