Yacht Lifting Gantry Crane
Rated Lifting Moment: Customizable
Lifting Height: Customer's requirements
Control Method: Remote control
After Warranty Service: Video technical support
Color: Customized
Condition: New
Warranty: 5 Years
Place of Origin: Henan, Chin
Description

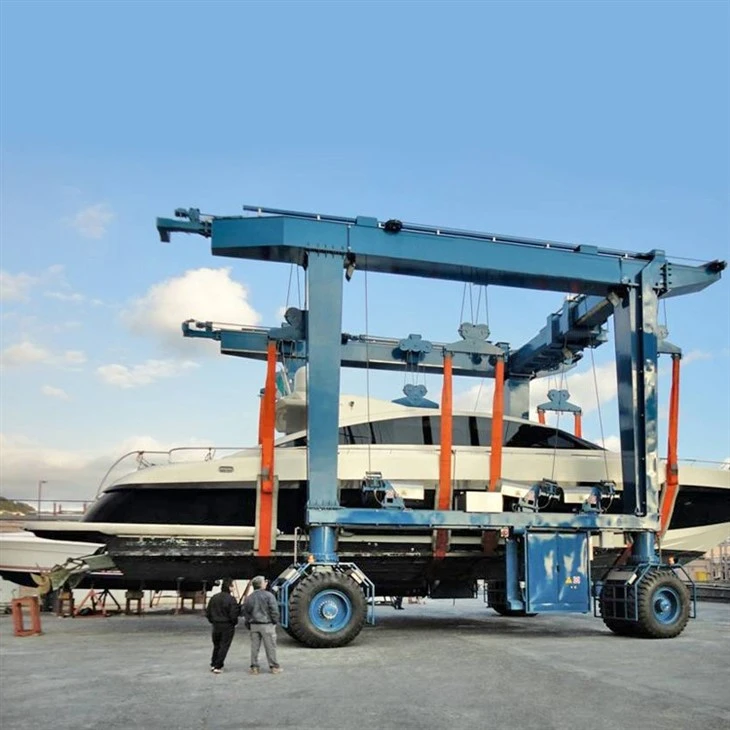

yacht lifting gantry crane Description
yacht lifting gantry crane is a sort of lifting equipment designed for lifting boats. It is preferred when the vessels to be moved approach 10 tons to 1200 tons and even beyond.
Compared to other types of vessel handling equipment, the boat crane lift is a kind of mobile boat hoist that allows you to position it anywhere you want it to be, which makes the movement more convenient and flexible.
Our boat lifts are capable of handling small to large-sized yachts or work boats with the utmost safety and efficiency.
yacht lifting gantry crane parameter
| Load capacity | Lifting Speed m/min | Travelling Speed m/min | Lifting Mechanism/Lifting Point Number | Diesel Engine kw | ||
| Full Load | ||||||
| 32t | 0~3 | 0~30 | 4/4 | 90 | ||
| 50t | 0~1 | 0~30 | 4/4 | 110 | ||
| 64t | 0~1 | 0~30 | 4/4 | 110 | ||
| 100t | 0~1 | 0~20 | 4/8 | 120 | ||
| 200t | 0~1 | 0~30 | 4/16 | 150 | ||
| 300t | 0~1 | 0~20 | 4/32 | 250 | ||
| 400t | 0~1 | 0~25 | 4/32 | 300 | ||
| 500t | 0~1 | 0~25 | 8/32 | 2x130 | ||
| 600t | 0~1 | 0~20 | 8/32 | 2x185 | ||
| 800t | 0~1 | 0~10 | 8/32 | 2x230 | ||
yacht lifting gantry crane main feature
Large Capacity
The yacht lifting gantry crane has large carrying capacity up to 1200 tons, which enables it to move heavy loads in a great speed.
Wide Applications
When you need to launch a newly built boat into water or haul a boat out of water, then a mobile boat crane can perfectly meet your requirements.
The mobile yacht lifting gantry crane can also be used to lift and move the hull of a boat in the shipyard for maintenance and repair.
Additionally, it can be utilized in your yard to arrange large boats in rows so as to increase the utilization of limited yard space.
