Beam launcher bridge construction description

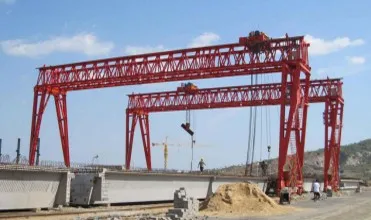

A launching gantry beam launcher bridge construction also called beam launcher, girder launcher, bridge building crane, and bridge-building machine. The beam launcher is made up of main girder, trolley, support legs, electrical system, hydraulic system and safety monitoring system.It has types like single girder beam launcher, double girder beam launcher,tires beam launcher and other types.

Beam launcher bridge construction features

♦ It's light weight, transportation, installation and removal is very convenient

♦ The Beam Launcher represents a good stability, high efficiency, safety and reliability, easy to adjust variable cross and easy to operate

♦ The legs do not through the bridge deck when longitudinal move, no need to lay vertical moving orbit, reduce the pressure on the deck

♦ It has three method picking up the precast beam: from rear end of the beam launcher on the deck level, from below on ground level, or from bridge side

Main technical parameter

                                                                                                        Send your special needs to us!

Beam launcher crane drawing

Construction technology process

1.Precast yard

Precast yard ,making T beam.Truss beam launcher lifting T beam .

2.Transport

Transporting girder handlebar precast beam to the construction site.

3.Beam feeding

 The transporter transports the T girder to the end of the beam launcher,then move two winch trolleys backwards to position.

4.Girder installation

Move PC girder forward using two winch trolley to erecting position ,lower PC girder and stop at the top of the bridge deck using two winch trolley simultaneously.Side shift PC girder to the top of the pier,and lower it on the pier using two winch trolleys.Repeat above stage,erecting other PC girder of

this span.
