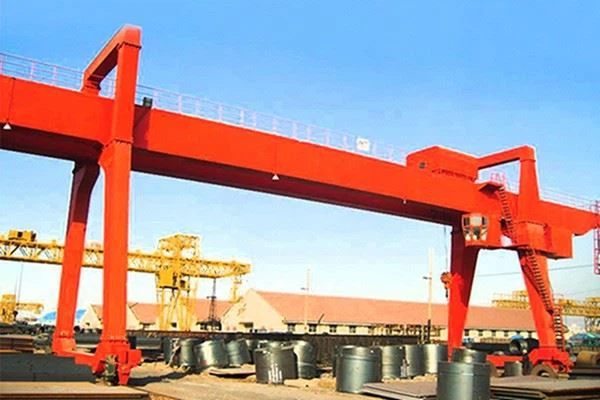

30ton Double Beam Gantry Crane
video
30ton Double Beam Gantry Crane

30ton Double Beam Gantry Crane

The span: 18-35m
The capacity:10-500ton
The working grade: A5
Gantry Crane is widely used in warehouse, freight yard, terminals and other places.

Send Inquiry

Description

 Double Girder Gantry Crane with hooks are widely used to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. . Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your different use.

Features Of Double Grider Gantry Crane

1. high working effiency; 2. smooth movement &comfortable operation; 3. convenient maintenance & aesthetic painting; 4. light deadweight, light wheel load and reliable performance; 5. customized: design and manufacture according to your request.
Technical Parameter of AQ-MG Double Girder Gantry Crane
Capacity(t)
10
32
50
100
250
400
Span(m)
18~35
18~35
18~35
18~35
18~35
18~35
Lifting height(m)
6~18
6~18
6~18
6~18
6~18
6~18
Lifting speed(m/min)
8.5
6
5.9
3.9
2.2
1.5
Trolley speed(m/min)
37.4
37
31.3
33.9
28
10
Crane speed(m/min)
37.7
38
44
32.3
50
18
Work duty
A3-A7
A3-A7
A3-A7
A3-A7
A3-A7
A3-A7
Track type
P43
P50 QU80
QU80
QU100
QU120
QU120

FAQ
Looking forward to receive your enquiry with the below details information:

1. Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground )
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling?
9. Driver cabine control or pendant control?
10. How many hours work per day?
11. Power source: 380V, 50Hz, 3phase or others?
