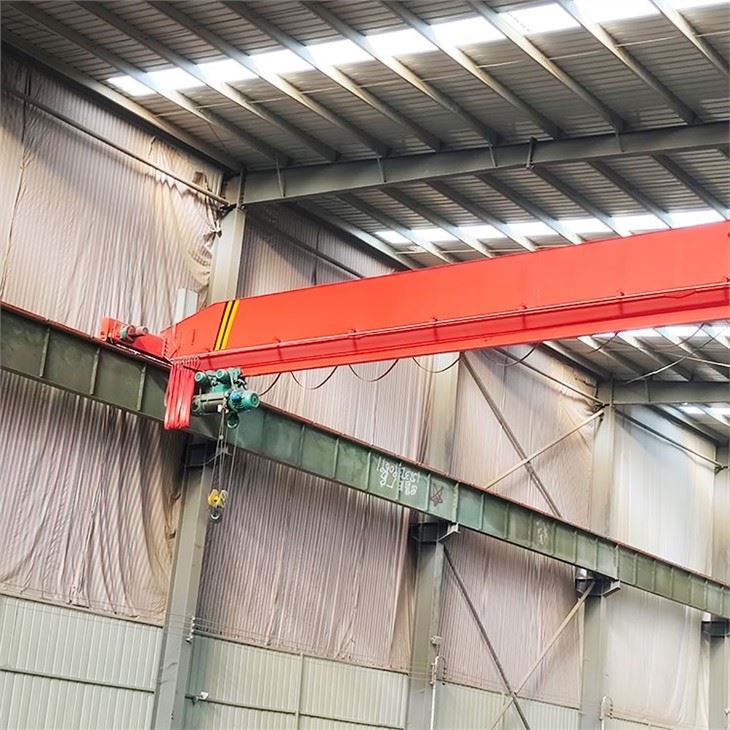

10 Ton Overhead Crane
Product model:LD
Lifting capacity: 1-25t
Span length: 7.5-31.5m
Lifting height: 6-30m
Lifting speed: 0.3-8m/min
Hoist travelling speed: 20m/min
Crane travelling speed: 20m/min
Working class: A3,A4
Description
10 ton Overhead Crane Description
The working principle of the electric hoist bridge crane is based on the synergy of two main components: the electric hoist and the bridge crane.
Electric hoist part: The electric hoist is the main lifting device of the crane, driven by an electric motor, and drives the drum through a gear transmission system to make the lifting hook rise or fall. The electric hoist is usually installed on the crossbeam of the bridge crane and can move horizontally along the track of the crossbeam.
Bridge crane part: The bridge crane includes components such as the main beam, end beam, track, and support structure. The main beam is the main load-bearing structure of the crane, supported on the track, and can move along the length of the track. The electric hoist is installed on the main beam and moves horizontally along the main beam through a transmission device driven by a motor.
10 ton Overhead Crane Structural Advantages
When working, the working process of the electric hoist bridge crane is usually as follows:
The start of the electric hoist is controlled by the operating console or remote control, and the motor on the electric hoist starts to work to rotate the drum.
When the drum rotates, the wire rope or chain is wound around the drum to lift or lower the load.
If the position of the hoisted object needs to be moved, the electric hoist can be controlled to move horizontally along the main beam, or the entire bridge crane can be controlled to move along the track to move the hoisted object to the target position.
After the hoisted object reaches the target position, stop the operation of the electric hoist, fix the hoisted object, and complete the lifting operation.
After the work is completed, turn off the power of the electric hoist and the bridge crane, and perform necessary maintenance and inspection.
In general, the electric hoist bridge crane lifts and moves the hoisted object through the electric hoist, and at the same time provides sufficient support and moving functions through the bridge crane to complete the lifting and moving operations.
Product Parameters
comparison of product parameters
|
Parameter(Customized)
|
|
|
Lifting capacity(ton)
|
1-30
|
|
Working class
|
A3-A5
|
|
Span(m)
|
7.5-31
|
|
Power source
|
3-phase A.C. 380V 50Hz
|
|
Lifting height(m)
|
6-30
|
Product Main Features
Features
Reasonable structure
High site utilization, large operating range, wide adaptability, time-saving and labor-saving, low noise
Stable performance
Light weight, small wheel pressure, simple structure, easy operation, stable operating performance
Small space occupation
Small height above the track surface, small space occupation, saving space
Easy to install
Good work efficiency, saving time and effort, detachable and easy to install and use
Certifications
Packing and Delivery
■ 100% QC inspection before shipment;
■ All frangible accessories will be protected by plastic papers and then packaged in wooden box;
■ Delivery time: strictly performer based on contract;
Our Service
1. Pre-sales service
● Understand customer needs and help customers choose reasonable products.
● Provide customers with technical services before equipment installation.
2. In-sale service
● According to the requirements of the contract, track, produce and deliver the equipment to ensure the safe and complete arrival of the equipment to the location designated by the customer.
● Provide various technical parameters required for the pre-installation of equipment installation.
3. After-sales warranty
● One year quick-wear parts for free
● Professional technicians provide installation, commissioning services.
● Technical advisory for any time.
