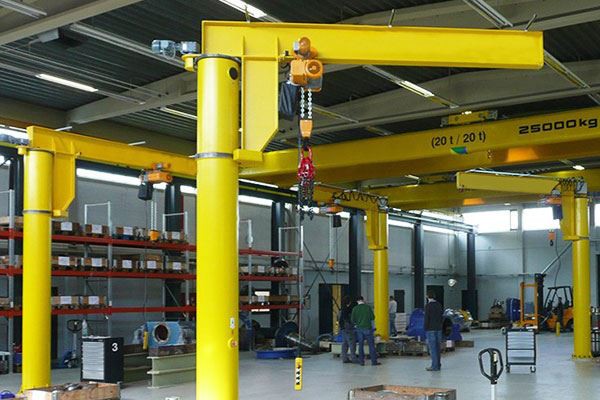

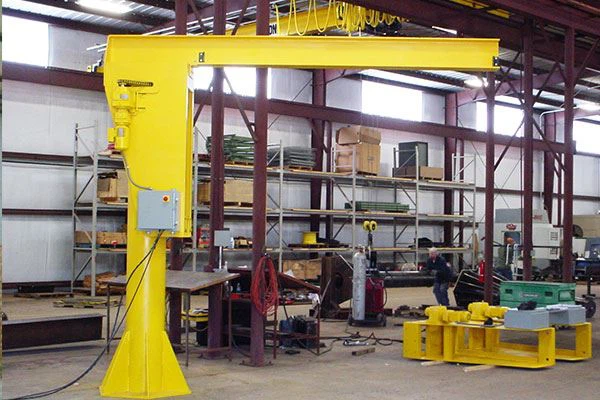

2 Ton Pillar Jib Crane

2 ton pillar jib crane

Send Inquiry

Description

Product Application

jib crane is a type of crane where a horizontal member (jib or boom), supporting a moveable hoist, is fixed to a wall or to a floor-mounted pillar. Jib cranes are used in industrial premises, workshop and on military vehicles. The jib may swing through an arc, to give additional lateral movement, or be fixed. Similar cranes, often known simply as hoists, were fitted on the top floor of warehouse buildings to enable goods to be lifted to all floors.

B Z Type floor column 0.5 ton 180 degree slewing jib crane

24 hours

Online service

5 years

Warranty

30+

Export experience

100+

Exporting country

comparison of product parameters

Model		BZD0.5	BZD1	BZD2	BZD3	BZD5
Rated capacityt	t	0.5	1	2	3	5
Max. lifting height	m	3			4
Max. working range	m	4			3
Max.turning radius	m	5			4.5
Max, lifting moment	tm	3	5.2	8.5	12.2	18.8
Rotation angle	°	360
Lifting speed	m/min	8;8/0.8
Trolley travelling speed	m/min	20
Rotation speed	r/min	1	0.75	0.7	0.9	0.6
Weight	kg	1000	1150	1350	3500	4500

B Z Type floor column 0.5 ton 180 degree slewing jib crane

Electric hoist stationary pillar cantilever crane 3t is a light duty lifting equipment, and its rated capacity have six specifications of 0.5t, 1t, 2t, 3t, 5t and 10t . According to different working requirements, we can choose different models of cranes. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to your usage.

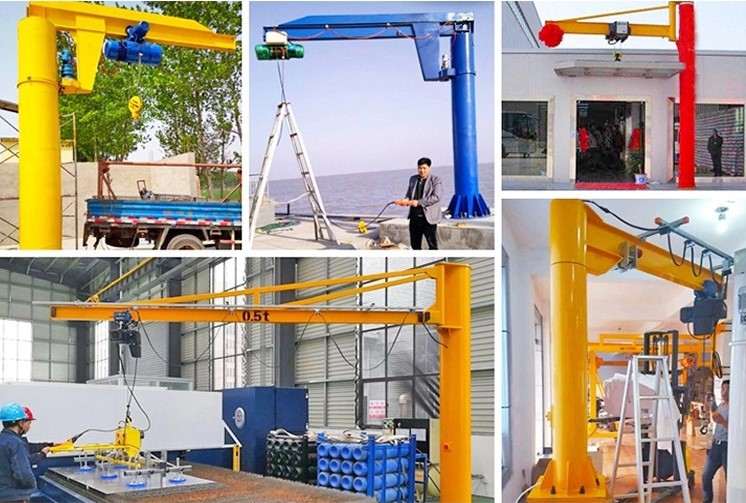

jib crane
